In municipal fire protection water supply systems, ground fire hydrants serve as critical infrastructure for firefighting operations, and their quality directly affects the efficiency and reliability of fire rescue efforts. The BS 750 standard, as an internationally recognized technical specification for ground fire hydrants, establishes strict quality and performance requirements for these products. Choosing cast iron ground fire hydrants that comply with the BS750 standard means providing solid protection for urban fire safety.
BS 750 is a technical specification for ground fire hydrants developed by the British Standards Institution (BSI) and is widely adopted globally. This standard specifies clear requirements for key parameters, including structural design, material selection, sealing performance, pressure rating, flow characteristics, and operating torque.
Fire hydrants conforming to the BS750 standard must pass rigorous type tests, including shell hydrostatic pressure tests, sealing performance tests, operating cycle tests, and flow tests, ensuring stable and reliable operation under various working conditions. Choosing BS750 standard fire hydrants means selecting fire hydrants that have undergone quality assurance verified by authoritative certification.
BS750 standard fire hydrants feature bodies manufactured from high-strength ductile iron or gray cast iron, offering excellent tensile strength and impact resistance. Cast iron material withstands ground vehicle pressure, accidental impacts, and long-term buried environment challenges, ensuring fire hydrants remain in good condition at critical moments.
Compared to ordinary materials, the BS750 standard specifies clear requirements for casting wall thickness, strength, and metallographic structure, eliminating issues such as brittleness and leakage that may result from casting defects. High-quality cast iron material, combined with anti-corrosion coating treatment, provides excellent weather resistance and corrosion resistance, with a service life that can reach several decades.
The BS 750 standard imposes strict requirements on fire hydrant sealing performance. The main valve adopts an elastic sealing structure, ensuring absolute sealing under normally closed conditions and preventing pipeline leakage. When water supply is needed, the valve stem can be rotated using a wrench, allowing smooth valve opening with operating torque conforming to standard requirements, ensuring firefighters can operate quickly and with minimal effort.
The standard requires fire hydrants to maintain zero leakage under rated pressure and maintain good sealing performance after multiple opening and closing cycles. This design ensures that even after long periods without use, fire hydrants can still discharge water normally during emergencies, providing reliable water sources for fire rescue operations.
The BS 750 standard establishes uniform requirements for fire hydrant connection dimensions, thread specifications, and connection positions. Standardized connection design ensures that fire hoses, fire trucks, and other equipment can connect to fire hydrants quickly and reliably, avoiding delays in firefighting response due to incompatible connections.
Fire hydrant connections typically adopt BS336 standard threads or quick-connect couplings, compatible with various fire protection equipment. Multiple outlet configurations can be selected based on actual requirements, meeting fire water demands in different scenarios.
Impact Resistance Design: Some BS750 fire hydrants feature impact resistance functionality. When struck by a vehicle, the upper structure can safely detach to prevent damage to the valve body, which could lead to pipeline leakage. This feature allows for quick repairs, reducing maintenance costs and conserving water.
Anti-Theft Design: Fire hydrants have specialized mechanisms that require wrenches for operation, which effectively prevent unauthorized access to water. Outlet caps can also be equipped with anti-theft locks, further enhancing the security of the water supply.
Freeze Protection Design: For cold regions, BS750 fire hydrants can be designed with self-draining structures. After closing, residual water inside the valve body automatically drains out, preventing winter freeze damage and ensuring normal operation under freezing conditions.
When selecting BS750 standard fire hydrants, the following parameters should be determined based on application scenarios: nominal diameter, outlet configuration, connection thread specifications, working pressure rating, and whether impact resistance functionality is required.

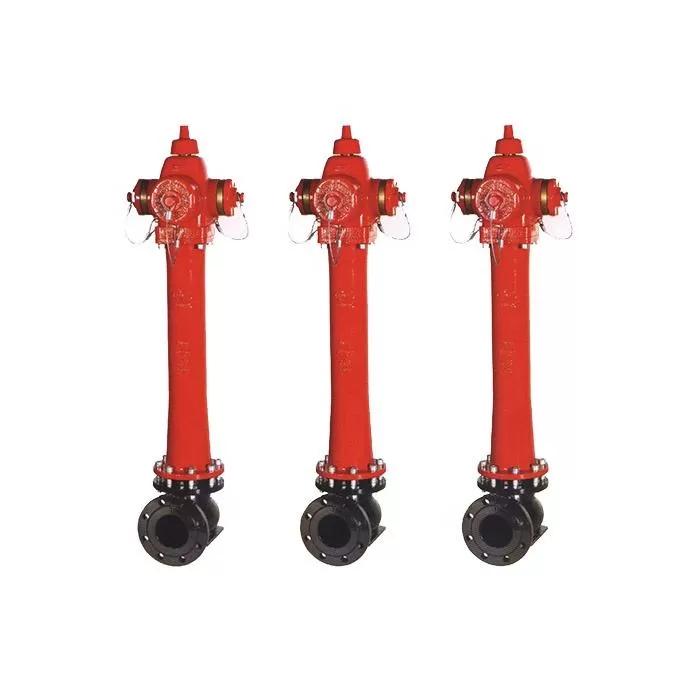

Our BS750 cast iron ground fire hydrant products strictly comply with British Standards Institution specifications. Manufactured from high-strength ductile iron with high-quality NBR or EPDM rubber seals, they are suitable for various water qualities and climatic conditions. Products have passed type test certification with reliable quality, widely used in municipal fire protection, industrial parks, airports, ports, large public buildings, and other fields.
