May 21, 2025
Rubber expansion joints, also known as rubber flexible connections or rubber compensators, are indispensable flexible connection components in pipeline systems. With their unique structural design and outstanding performance, they are widely used in industries, construction and other fields, effectively solving problems caused by factors such as thermal expansion and contraction and vibration of pipelines.
I. Structural Composition

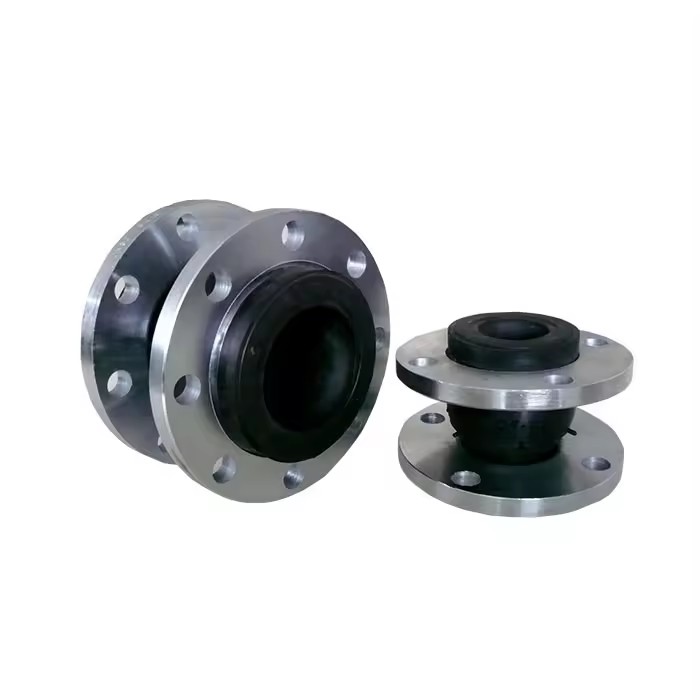

Rubber expansion joints are mainly composed of three parts: the rubber main body, the reinforcing layer and the flange or joint. The main rubber body is made of high-quality rubber materials such as natural rubber, nitrile rubber, and ethylene propylene diene monomer (EPDM) rubber. Different rubber materials correspond to different applicable working conditions. The reinforcing layer is composed of high-strength fiber fabric or steel wire mesh, providing the rubber expansion joint with strong compressive and tensile resistance, ensuring its stable operation under high-pressure conditions. The flanges or joints are made of metal materials such as carbon steel and stainless steel, and are closely combined with the rubber main body through vulcanization process to achieve reliable connection with the pipeline.
Ii. Working Principle
Rubber expansion joints take advantage of the high elasticity, high air tightness, medium resistance and weather resistance of rubber materials, as well as their own structural characteristics, to effectively compensate for the thermal expansion and contraction of pipeline systems due to temperature changes, as well as the vibration and displacement caused by equipment operation. When the temperature of the medium inside the pipeline rises, the pipeline expands and elongates due to heat. The rubber expansion joint will absorb the elongation through its own elastic deformation to prevent the pipeline from being damaged due to excessive stretching. When the pipe contracts due to cold, it can also provide elastic recovery force to prevent stress concentration caused by the contraction of the pipe. In addition, when equipment such as water pumps and fans are in operation, rubber expansion joints can effectively isolate the vibration of the equipment, reduce the transmission of vibration to the pipeline, lower noise, and protect the pipeline and connected equipment.
Iii. Product Features
High elasticity and strong compensation capacity: The rubber material endows the expansion joint with excellent elasticity, which can compensate for the axial, lateral and angular displacements of the pipeline within a certain range. The general axial compensation can reach ±15 - ±50mm, the lateral displacement compensation ±10 - ±30mm, and the angular displacement compensation can reach 15° - 30°, effectively alleviating the stress caused by displacement in the pipeline.
The shock absorption and noise reduction effect is remarkable: The elasticity and flexibility of rubber make it an ideal vibration isolation material, which can significantly reduce the noise caused by equipment vibration and medium flow in the pipeline system. After testing, it was found that after installing rubber expansion joints, the noise of the pipeline system can be reduced by 15 to 30 decibels, effectively improving the working environment.
Strong corrosion resistance and weather resistance: By choosing the appropriate rubber material according to different media and working conditions, the expansion joint can have excellent resistance to acid, alkali, oil and aging.
Convenient installation and maintenance: Rubber expansion joints are lightweight and flexible. During installation, no special tools or complex processes are required. Just connect them to the pipe flange through bolts. In daily use, there is no need for frequent maintenance. Just regularly check the rubber surface for cracks, aging and other phenomena. If there is any damage, replacement is also relatively convenient.
Iv. Application Fields
Building water supply and drainage system: In the water supply and drainage pipelines of high-rise buildings, it is used to compensate for the displacement caused by floor settlement and temperature changes, and at the same time isolate the vibration and noise of equipment such as water pumps and air conditioning units, ensuring the stable operation of the water supply and drainage system.
Industrial piping systems: In industries such as chemical engineering, petroleum, power, and metallurgy, they are used for transporting various corrosive, high-temperature, and high-pressure media. They compensate for the displacement of pipelines caused by temperature and pressure changes and protect the safety of pipelines and equipment. For instance, in chemical production, for pipelines transporting acid and alkali solutions, the use of corrosion-resistant rubber expansion joints can effectively prevent medium leakage and pipeline damage.
Fire protection piping system: Ensure that the fire protection piping can supply water normally during a fire, absorb the displacement of the piping caused by temperature changes and water flow impacts, prevent piping loosening and leakage, and ensure the reliable operation of the fire protection system.
Rubber expansion joints, with their unique performance and wide applicability, have become an important guarantee for the stable operation of pipeline systems.
