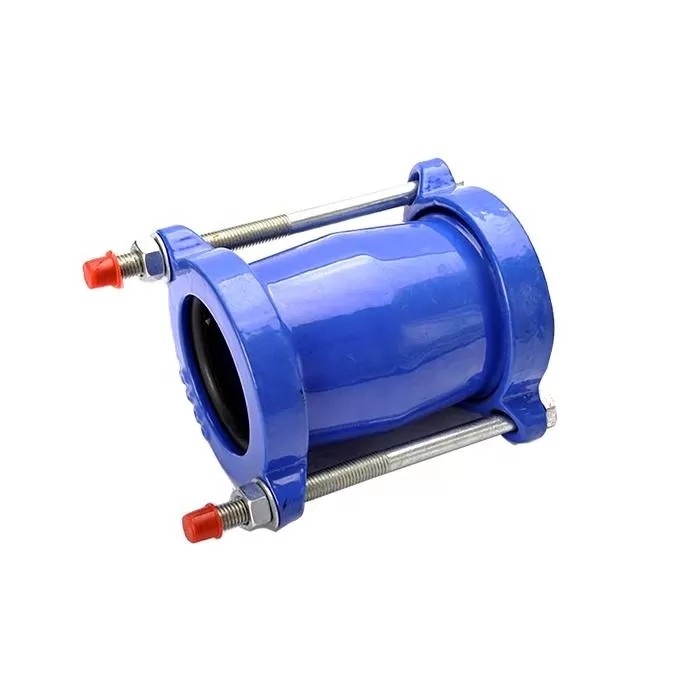

Analysis of Gibault Joint: Why It Is a Vital Connector in PVC Pipe Systems？

In the construction and operation of PVC pipe systems, the performance of connectors directly determines the system’s sealing, stability, and service life. As a key connecting component specifically designed for PVC pipes, the Gibault Joint has become an irreplaceable and vital part of PVC pipe systems due to its adaptability to the characteristics of PVC materials, its ability to handle complex working conditions, and its alignment with system operation and maintenance needs.

I. Adapting to PVC Material Characteristics to Address "Rigid Connection" Pain Points

While PVC pipes offer benefits like corrosion resistance and lightweight properties, they also come with certain inherent characteristics. These include a relatively high coefficient of thermal expansion and contraction, as well as limited impact resistance. If traditional rigid connectors are used to excessively restrict the deformation of the pipes, it can lead to cracking at the joints and failure of the seals. Additionally, if the pipes experience external impacts, this may cause damage to the pipe fittings. The Gibault Joint has undergone structural optimization to address this pain point:

Flexible Compensation Design: The joint features a built-in elastic seal, allowing for a certain amount of axial or radial displacement. This design can absorb the expansion and contraction deformation of PVC pipes caused by temperature changes, preventing deformation stress from being transmitted to the joint and fundamentally reducing the risk of "deformation-induced cracking".

Non-Rigid Restraint Structure: The connection with PVC pipes adopts a combined "socket + union" form, rather than completely rigid welding or bonding. This structure not only ensures connection strength but also buffers stress when the pipe experiences slight vibrations, making it compatible with the weak impact resistance of PVC materials.

This precise adaptation to the characteristics of PVC materials enables the Gibault Joint to effectively make up for the "compatibility defects" between traditional connectors and PVC pipes, reducing system failures caused by material properties.

II. Enhancing Sealing and Leak-Proof Capabilities to Meet Core Scenario Needs of PVC Pipes

PVC pipes are widely used in scenarios such as water supply and drainage, chemical fluid transportation, and agricultural irrigation. A common core requirement of these scenarios is long-term sealing and leak prevention—once a joint leaks, it not only wastes water resources or media but may also cause problems such as environmental pollution and ground subsidence. The sealing design of the Gibault Joint is precisely tailored to meet this demand:

Multi-Seal Structure: Most Gibault Joints adopt a combined sealing form of "double seal rings + socket sealing surface". Compared with traditional single-seal-ring joints, this design has higher sealing redundancy and can effectively resist the impact of medium pressure fluctuations and temperature changes on sealing performance.

Removable Seal Maintenance: Unlike one-time bonded joints, the union structure of the Gibault Joint allows for disassembly and replacement of seals. When seals are worn or aged due to long-term use, there is no need to replace the entire pipe section—only the seals need to be replaced to restore sealing performance, reducing maintenance costs and system downtime.

III. Expanding the Application Boundaries of PVC Pipes to Adapt to Diverse Working Conditions

Traditional PVC connectors are limited by their structure and performance, often only applicable to low-pressure, normal-temperature, and weakly corrosive scenarios. However, the performance advantages of the Gibault Joint have enabled PVC pipes to be extended to more complex working conditions, further enhancing the application value of PVC pipe systems:

Adapting to Medium-Low Pressure Working Conditions: By optimizing the flange structure and bolt strength, the Gibault Joint can withstand higher medium pressure (usually up to 1.6MPa or more). Compared with traditional PVC bonded joints, it can meet the needs of medium-pressure scenarios such as industrial circulating water and low-pressure chemical fluid transportation.

Compatible with Multi-Medium Transportation: Combined with corrosion-resistant seals and the inherent corrosion resistance of PVC pipes, the Gibault Joint can be used in scenarios involving the transportation of corrosive media such as acid-base solutions and agricultural pesticide solutions. This expands the application boundaries of PVC pipes in industrial and agricultural fields.

Conclusion: The Gibault Joint—A "Performance Adapter" and "Efficiency Enabler" for PVC Pipe Systems

The Gibault Joint addresses the challenges presented by PVC pipes in practical applications through three key dimensions: material adaptability, ease of construction, and suitability for various working conditions. It not only compensates for the physical limitations of PVC materials but also meets the sealing, installation, and maintenance requirements of different scenarios. Additionally, it helps expand the application possibilities for PVC pipes.
