Gibault Joint for PVC

Specification

Standard: ISO2531，EN545

Pressure: PN10/PN16

Body material: Ductile iron with FBE ( fusion bonded epoxy) coating or Epoxy painting; Gaskets are NBR or EPDM;

Belt: SS304

Bolts and Nuts: SS304

Package: wooden cases and protection layer.

Application: Tapping saddle is for connecting PVC, PE, steel, DI, AC, GRP pipes. The outlet can be thread to connect with pipes, valves etc.

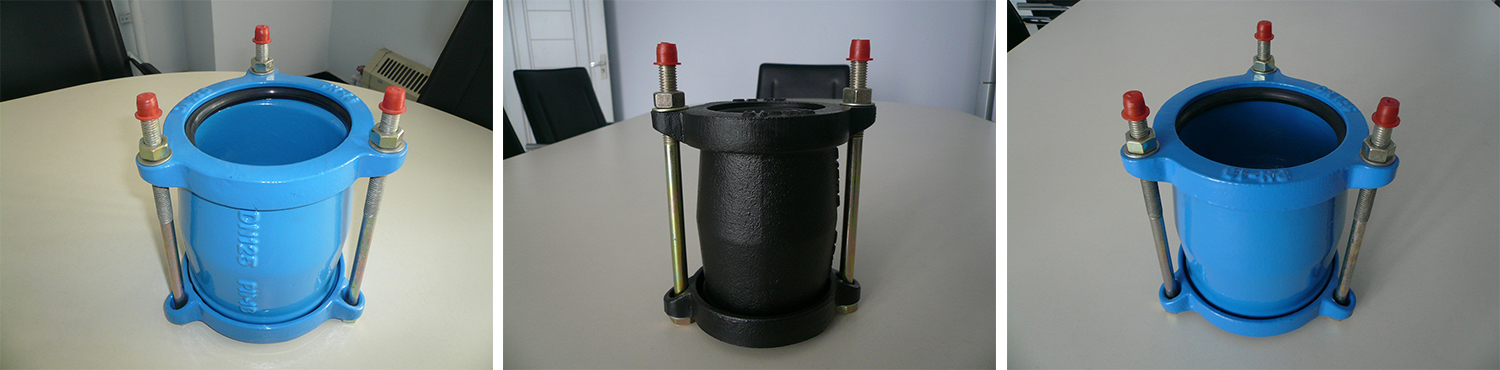

Gibault Joint for PVC

Gibault Joint for PVC

Gibault Joints are a coupling designed to provide an efficient and economical mechanical joint for white PVC pipes. The gibault coupling is ideal for reconnecting pipes after the removal of damaged pipe, or for connecting pipeline fittings in line. The Gibault Joint for PVC is a crucial part of PVC pipe connection systems.

Structure

Its main body is typically crafted from ductile iron (GGG50), with corrosion - resistant coatings like FBE or epoxy paint. The gasket, made of NBR or EPDM rubber, sits between the pipe and the joint for sealing and shock absorption. Galvanized steel or stainless-steel (SS304/SS316) bolts and nuts are used for secure fastening.

Features

It offers high-level sealing, preventing leakage of various media. With a capacity to withstand PN10/PN16 working pressures, it suits different pipeline needs. Installation is easy, requiring no special tools, thus boosting construction efficiency. It's compatible with PVC pipes ranging from 2 to 12 in diameter, providing layout flexibility.

Applications

This joint is extensively used in municipal water supply and drainage systems, connecting PVC pipes for water and sewage conveyance. In agricultural and garden irrigation, it ensures smooth operation of irrigation pipelines. It also plays a key role in industrial settings where PVC pipes transport non-corrosive substances.
