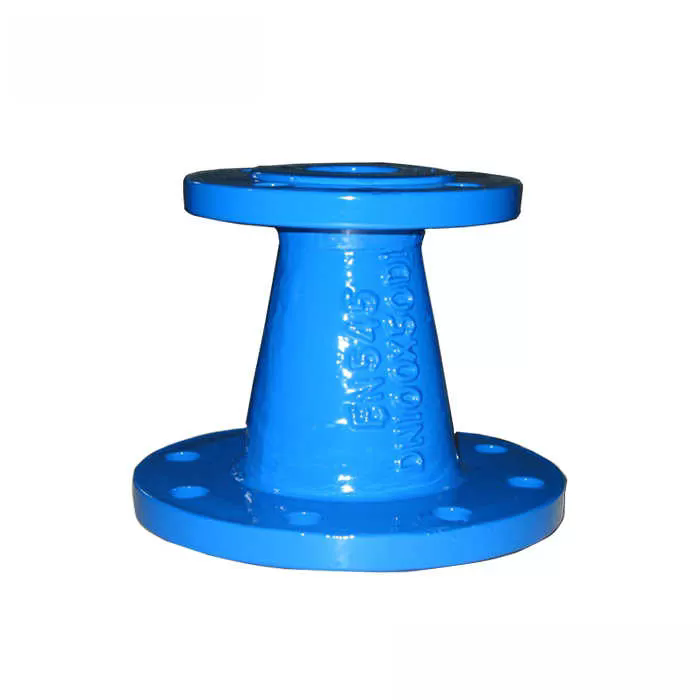

In the vast and complex world of pipelines, every connector is like a crucial gear in a precision instrument. The performance of these connectors directly affects the stable operation and efficiency of the entire system. Among them, the double flange reducer stands out among numerous connectors with its unique design and excellent performance, becoming the preferred solution for many engineers and constructors. What exactly is its charm? And in which aspects does it surpass other common pipeline connectors? Let's explore in depth.
Once welded, welded connectors are extremely difficult to disassemble for maintenance or replacement of components, and there is even a risk of damaging the pipeline. Although threaded connectors are easy to disassemble, in pipeline systems with large diameters, high pressure, or significant vibrations, the threads are prone to loosening, affecting the connection stability. The double flange reducer, on the other hand, uses bolted connections. During installation, no special tools or complex techniques are required, and it can be quickly assembled with pipelines of different diameters. When disassembling, simply loosening the bolts allows for easy separation, greatly reducing the maintenance difficulty and time cost of the pipeline system, especially suitable for occasions that require frequent inspections.
The sealing effect of welded connectors depends on the welding process. If the welding quality is poor, problems such as air holes and cracks are likely to occur, leading to leakage. Threaded connectors require the use of sealant or PTFE tape. After long-term use, the sealing materials may age, resulting in a decrease in sealing performance. The double flange reducer, through the combination of the flange plate and the sealing gasket, forms a stable and reliable sealing structure under different pressure and temperature conditions after the bolts are evenly tightened. This effectively prevents fluid leakage and ensures the safe operation of the pipeline system, especially showing its advantages when transporting dangerous media such as toxic, flammable, and explosive substances.
In other connectors, at the point of diameter change, due to structural reasons, large fluid resistance and eddy currents are likely to occur, affecting the flow rate and pressure stability of the fluid and increasing energy consumption. The transition body of the double flange reducer is precisely designed to be conical or stepped, allowing the fluid to spread or converge evenly when the diameter changes, achieving a smooth transition. This minimizes fluid resistance and eddy currents, ensuring the stable transportation of the fluid and improving the operating efficiency of the pipeline system while reducing energy consumption costs.
Welded connectors have strict requirements for pipeline materials and diameters. Welding pipelines of different materials is difficult, and it is hard to directly connect pipelines of different diameters. Threaded connectors have limitations in application in large-diameter pipelines and also have certain requirements for the wall thickness of the pipelines. The standard flange connection method of the double flange reducer has strong versatility. It can be adapted to pipelines made of various materials such as carbon steel, stainless steel, and alloy steel. It can connect pipelines of different diameters and different pressure classes. Moreover, according to the requirements of the working conditions, sealing gaskets and flange types of different materials can be selected to meet the connection needs of various complex pipeline systems.
The welded joints of welded connectors are prone to damage due to factors such as stress concentration and corrosion. The wear of the threads in threaded connectors will also shorten their service life. The double flange reducer has a stable structure. By regularly inspecting and replacing vulnerable parts such as sealing gaskets and bolts, it can effectively prevent leakage and connection failure problems, extending the service life of the entire pipeline system and reducing the costs and downtime caused by replacing connectors.
In conclusion, the double flange reducer, with its significant advantages such as convenient connection and maintenance, excellent sealing performance, minimal impact on fluid transmission, wide applicability, and long service life, has become a well-deserved leader in pipeline connections. With the continuous progress of industrial technology and the continuous advancement of infrastructure construction, the double flange reducer will surely play a key role in more complex working conditions and high-end application scenarios, and with its reliable performance and outstanding performance, it will provide strong support for the development of modern pipeline engineering.
