The Double Flange Reducer is manufactured using high-quality materials, ensuring maximum durability and longevity of use. It is designed to cater to both low and high-pressure applications, making it ideal for use in different industries...
Material: iron GGG500-7, GGG450-10 or Ductile iron
Standard: ISO2531, EN545, AWWA153 & C110
Size: DN60mm-2000mm
Certificate: ISO 9001 2008 and BV Product Conformity
Gasket: are SBR, EPDM, NBR
| Material | Ductile iron |
| Standard | EN545, EN598, ISO2531, ANSI/AWWA, etc |
| Size | DN50-DN2600mm |
| Color | Blue, Black, Red Ect. |
| Joint Type | Flange type |
| Pressure | PN10/PN16/PN25/PN40 |
| OEM | Acceptable |
| Fitting Types | Socket bend, Flanged bend, Socket and Flanged Tee, Flanged socket, Socket taper, blank flanges, as well as Flanged adaptor, coupling, dismantling joints, Fitting for PVC pipes and Other pipeline accessories |
| Surface treatment | Fusion bonded epoxy coating |
| Cement lining inside and zinc and bitumen coating outside | |
| Zinc+bitumen inside and outside | |
| According to customers' requirements | |
| Inspection | Foundry in-house: Third party inspection available upon request |
| Application | Stormwater systems Wastewater systems Irrigation systems |
| Advantage | We can make various high quality ductile iron fittings according to customer's requests. |
| Package | Standard wooden pallets or wooden cases |

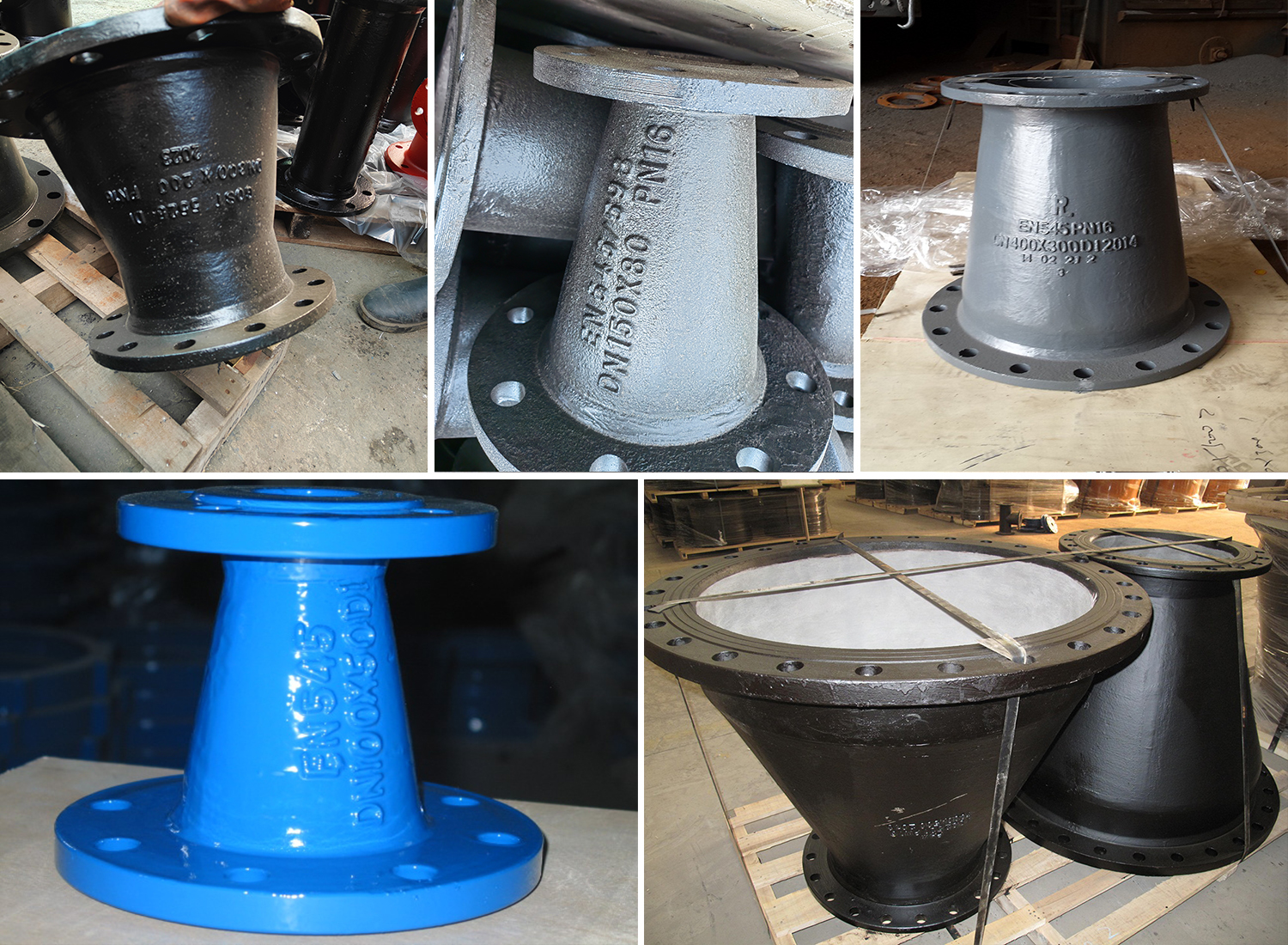

The Double Flange Reducer is manufactured using high-quality materials, ensuring maximum durability and longevity of use. It is designed to cater to both low and high-pressure applications, making it ideal for use in different industries. In addition, the product features a two-sided design that allows for easy installation and maintenance.
The Double Flange Reducer is available in various sizes, ensuring a perfect fit for your specific requirements. It also comes in different materials such as stainless steel, carbon steel, and alloy steel. The different material options provide users with flexibility, allowing them to choose the best one depending on their operational environment.
The design of the Double Flange Reducer is optimized for minimal flow restriction, which ensures smooth and seamless flow of fluid within the system. This feature makes it ideal for use in highly pressurized systems that require consistent and reliable flow rates.
The Double Flange Reducer is also resistant to corrosion, making it perfect for use in humid and saline environments. Its robust construction ensures that it can withstand high temperatures and pressures, as well as physical wear and tear.
In summary, the Double Flange Reducer is a versatile, efficient and reliable plumbing solution that offers maximum durability, easy installation, and minimal flow restriction. Contact us today to learn more about how this product can cater to your specific needs.
Product Dimensions
| SIZE | A | R | T | T1 | RRESSURE RATING CLASS DUCTILE IROW | WEIGHT |
| 3*2 | 5.5 | 4.0 | _48 | _31 | 250 | 22 |
| 80*50 | 130 | 101 | 12 | 7 | 9 | |
| 4*3 | 6.5 | 4.5 | _52 | _48 | 250 | 29 |
| 100*80 | 165 | 114 | 13 | 12 | 13 | |
| 6*3 | 8.0 | 6.0 | _55 | _48 | 250 | 45 |
| 150*100 | 203 | 152 | 14 | 12 | 20 | |
| 6*4 | 8.0 | 6.0 | _55 | _52 | 250 | 55 |
| 150*100 | 203 | 152 | 14 | 13 | 25 | |
| 6*5 | 8.0 | 6.0 | _60 | _52 | 250 | 66 |
| 150*130 | 203 | 152 | 15 | 13 | 29 | |
| 8*4 | 9.0 | 7.0 | _60 | _52 | 250 | 75 |
| 200*100 | 223 | 178 | 15 | 13 | 34 | |
| 8*5 | 9.0 | 7.0 | _60 | _52 | 250 | 80 |
| 200*130 | 223 | 178 | 18 | 13 | 36 | |
| 8*6 | 9.0 | 7.0 | _60 | _55 | 250 | 85 |
| 200*150 | 229 | 178 | 15 | 14 | 38 | |
| 10*4 | 11.0 | 9.0 | _68 | _52 | 250 | 110 |
| 250*100 | 279 | 229 | 17 | 13 | 50 | |
| 10*6 | 11.0 | 9.0 | _68 | _55 | 250 | 135 |
| 250*200 | 279 | 229 | 17 | 14 | 61 | |
| 10*8 | 11.0 | 9.0 | _68 | _55 | 250 | 150 |
| 250*200 | 279 | 229 | 17 | 14 | 68 | |
| 12*4 | 12.0 | 10.0 | _75 | _52 | 250 | 140 |
| 300*100 | 305 | 254 | 19 | 13 | 63 | |
| 12*6 | 12.0 | 10.0 | _75 | _55 | 250 | 160 |
| 300*200 | 305 | 254 | 19 | 14 | 72 | |
| 12*8 | 12.0 | 10.0 | _75 | _60 | 250 | 180 |
| 300*200 | 305 | 254 | 19 | 15 | 82 | |
| 12*10 | 12.0 | 10.0 | _75 | __68 | 250 | 210 |
| 300*250 | 305 | 254 | 19 | 17 | 95 | |
| 14*6 | 14.0 | 11.5 | _66 | _55 | 250 | 144 |
| 350*150 | 365 | 292 | 17 | 14 | 65 | |
| 14*8 | 14.0 | 11.5 | _66 | _55 | 250 | 200 |
| 350*200 | 365 | 292 | 17 | 14 | 91 | |
| 14*10 | 14.0 | 11.5 | _66 | _68 | 250 | 240 |
| 350*250 | 365 | 292 | 17 | 17 | 109 | |
| 14*12 | 14.0 | 11.5 | _66 | _75 | 250 | 270 |
| 350*300 | 365 | 292 | 17 | 19 | 122 | |
| 16*6 | 15.0 | 12.5 | _70 | _55 | 250 | 220 |
| 350*300 | 381 | 317 | 18 | 14 | 100 | |
| 16*8 | 15.0 | 12.5 | _66 | _60 | 250 | 240 |
| 400*200 | 381 | 317 | 17 | 15 | 109 | |
| 16*10 | 15.0 | 12.5 | _66 | _68 | 250 | 280 |
| 400*250 | 381 | 317 | 17 | 17 | 127 | |
| 16*12 | 15.0 | 12.5 | _66 | _75 | 250 | 310 |
| 400*300 | 381 | 317 | 17 | 19 | 141 | |
| 16*14 | 15.0 | 12.5 | _66 | _66 | 250 | 330 |
| 400*300 | 381 | 317 | 17 | 17 | 150 | |
| 18*6 | 16.5 | 14.0 | _75 | _55 | 250 | 260 |
| 450*150 | 419 | 356 | 19 | 14 | 114 | |
| 18*8 | 16.5 | 14.0 | _75 | _60 | 250 | 280 |
| 450*200 | 419 | 356 | 19 | 15 | 127 | |
| 18*10 | 16.5 | 14.0 | _75 | _68 | 250 | 320 |
| 450*250 | 419 | 356 | 19 | 17 | 145 |
