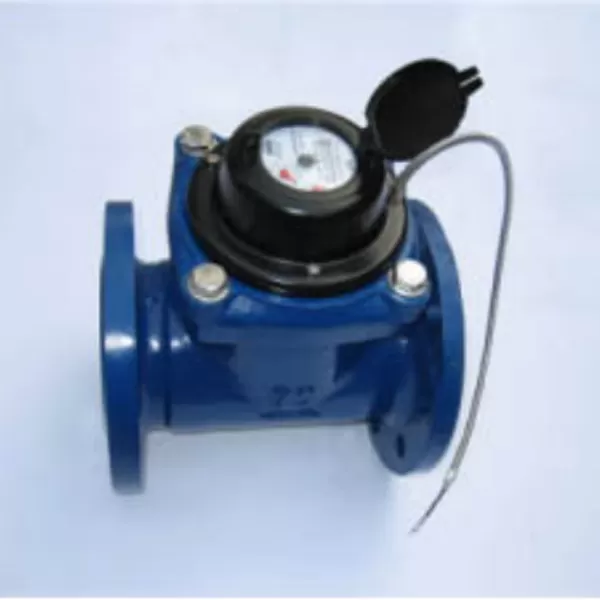

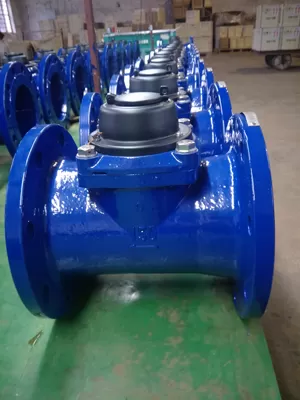

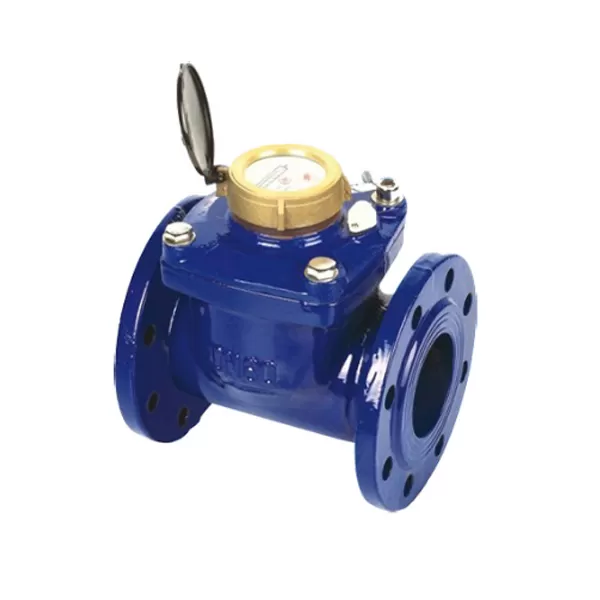

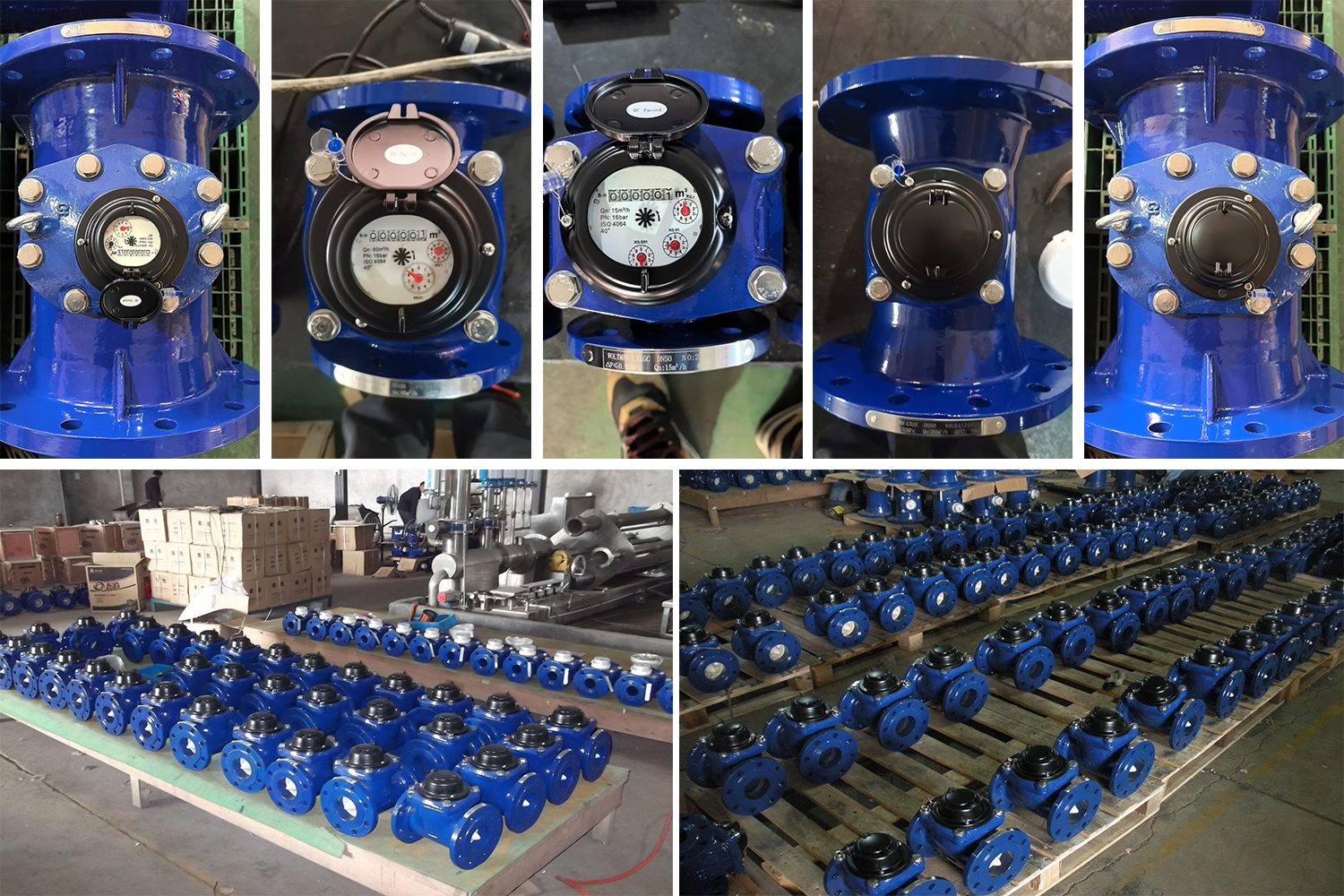

Woltman flanged water meter LXLC is a water meter with the features of double flange connection, removable structure, larger capacity, lower pressure loss, and long service life; Its removable structure makes the water meter not have to be removed from the pipe, the mechanism can be pulled out for repair or replacement; The magnetic transmission structure makes reading clearer, it is available for both cold water and hot water. And also available with the pulse output.
The Woltman Flanged Water Meter (also known as a Helical or Turbine Meter) is a velocity-type water meter designed for measuring large volumes of water in industrial, municipal, and irrigation applications. Unlike traditional rotary vane meters, the Woltman design utilizes a helical rotor placed axially in the flow stream. This construction minimizes pressure loss and ensures high accuracy even at continuous high flow rates.
MIDAS Woltman meters are available in sizes ranging from DN50 to DN500, featuring a robust cast iron body with epoxy coating and a removable measuring element for easy maintenance without dismantling the meter from the pipeline.Get a QuoteMade from corrosion resistant materials.
IP68 protection for the head.
The head can rotate 360 ° for easy reading.
Interchangeable measuring unit.
Low pressure drop.
Protected against disturbances caused by magnetic fields.
Option: dry contact pulse emitter.
Body: Ductile casting with epoxy coating.

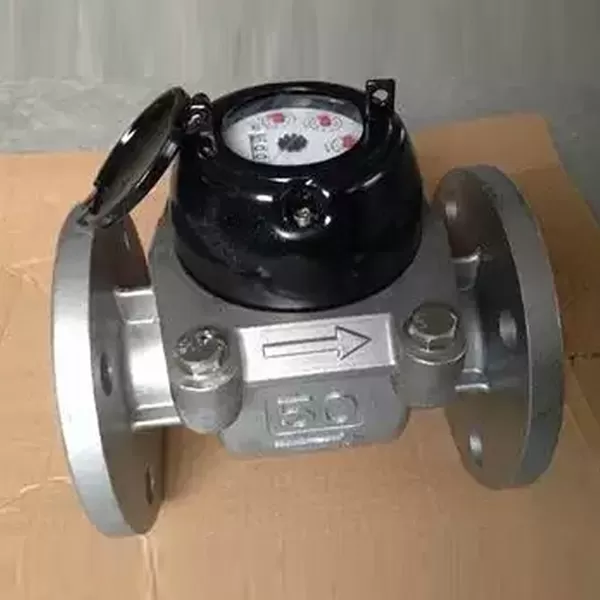

Other materials on request (stainless steel,Gray iron).
Working Condition:

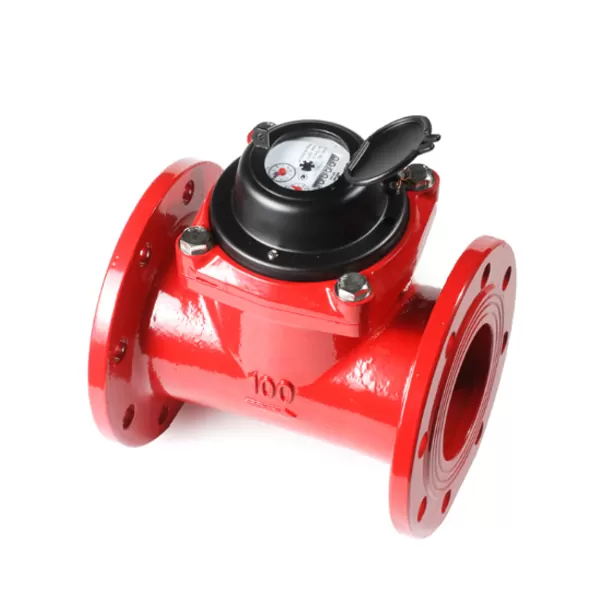

a) Water temperature: 0.1℃～40℃(cold water) 1℃～90℃(hot water)
b) Water pressure: ≤1.0MPa
Maximum permissible error:
a) In the lower zone from qmin inclusive up to but excluding qt is ±5%
b) In the upper zone from qt inclusive up to and including qs is ±2%(cold water) , ±3%(hot water)
Standard: ISO4064 ClassA/B
Material: Gray iron, ductile iron, stainless steel are available.
| 1 | Product name: | Woltman Flange End Cold Water Meter |
| 2 | Operating condition: | PN: 1.0/1.6 Mpa (10/16bar) |
| 3 | The water temperature: | cold water up to 50℃ and hot water up to 90℃ |
| 4 | Standard: | ISO 4064 Class B |
| 5 | Material: | Brass, Iron, Plastic |
| 6 | Size: | DN40 – DN600 |
| 7 | Type: | dry |
| 8 | Application: | To totalize the total volume of water passing through the pipeline |
| 9 | Certificate: | ISO,SGS and third party inspection |
| 10 | Brand name: | MIDAS |
| 11 | Delivery detail: | within 20-30 days after receipt the 70% balance |
| 12 | Packing: | Carton, pallet and as per customer's requirement. |
1)Dry type water meter

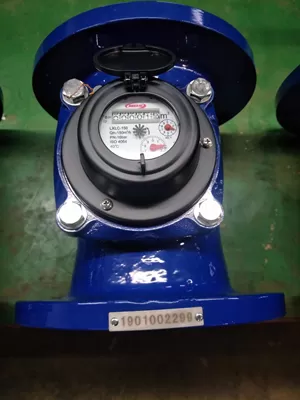

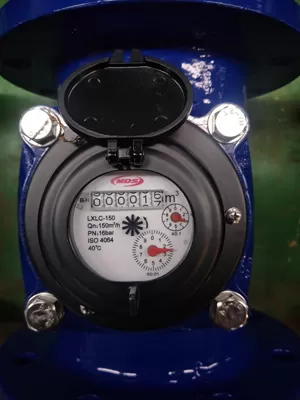

2)using the word wheel display
3)easy to read,small pressure loss, easy maintenance
4)Wide Flow Range (High R-Value): Excellent accuracy over a broad flow range, ensuring precise measurement from low leakage detection to peak demand.
5)Removable Measuring Element: The internal mechanism can be removed for maintenance or calibration while the body remains installed in the pipeline, significantly reducing downtime and maintenance costs.
6)Low Pressure Loss: The streamlined helical rotor design minimizes head loss, saving energy costs in pumping stations.
7)Durable Construction: Manufactured from high-quality ductile iron with internal and external epoxy coating for superior corrosion resistance.
8)Versatile Output Options: Equipped with a hermetically sealed register; options available for reed switch pulse output, Hall effect sensors, or digital communication (RS485/M-Bus) for AMR/AMI systems.
To totalize the total volume of water passing through the pipeline. This system suitable for Water Company, real estate companies, properly management departments, some water managements. Compared with old fashioned way of meter reading, it put emphasize on solving purchasing difficult meanwhile it realies automatic statistics, and automatic analysis. The specific application prorammes can choose flexibility according to different environment and requirement.
Municipal Water Works: Main inlet/outlet flow measurement in water treatment plants.
Industrial Plants: Monitoring cooling water, process water, and boiler feed water.
Agriculture & Irrigation: Measuring large volumes of water in irrigation channels.
Fire Protection Systems: UL/FM listed versions available for fire line monitoring.
Commercial Buildings: Bulk metering for HVAC systems and main service lines.
Certified Quality: Compliant with ISO 4064, OIML R49, and MID standards.
Custom Solutions: We offer OEM manufacturing with your brand and specific calibration requirements.
Smart Water Ready: Seamless integration with our data logging and remote reading systems.
Long-Term Reliability: Designed for a service life of over 10 years under harsh conditions.
Select the right size for your project. Download our full technical datasheet or request a quote for your next bulk water project.
Product Dimensions
Main Technical Specifications:
| Type | Size | Class | Q4 Overload | Q3 Permanent | Q2 Transitional | Q1 Minimum | Minimum Reading | Maximum Reading |
| m³/h | M³/h | m³ | ||||||
| LXLC-50 | 50 | B | 31.25 | 25 | 2 | 0.5 | 0.0005 | 999,999 |
| LXLC-65 | 65 | B | 50 | 40 | 3.2 | 0.8 | 0.0005 | 999,999 |
| LXLC-80 | 80 | B | 78.75 | 63 | 5.04 | 1.26 | 0.002 | 999,999 |
| LXLC-100 | 100 | B | 125 | 100 | 8 | 2 | 0.002 | 999,999 |
| LXLC-125 | 125 | B | 200 | 160 | 12.8 | 3.2 | 0.002 | 999,999 |
| LXLC-150 | 150 | B | 312.5 | 250 | 20 | 5 | 0.002 | 999,999 |
| LXLC-200 | 200 | B | 500 | 400 | 32 | 8 | 0.002 | 999,999 |
| LXLC-250 | 250 | B | 787.5 | 630 | 50.4 | 12.6 | 0.02 | 999,999 |
| LXLC-300 | 300 | B | 1250 | 1000 | 80 | 20 | 0.02 | 999,999 |
Dimensions:
| Type | Size | L Length | H Width | Connecting flange | ||||
| φD1Outside diameter | φD2Bolt circle diameter | Connecting Bolts (n-M) | ||||||
| mm | ||||||||
| LXLC-50 | 50 | 200 | 261 | 165 | 125 | 4-M16 | ||
| LXLC-65 | 65 | 200 | 271 | 185 | 145 | 4-M16 | ||
| LXLC-80 | 80 | 225 | 279 | 200 | 160 | 8-M16 | ||
| LXLC-100 | 100 | 250 | 289 | 220 | 180 | 8-M16 | ||
| LXLC-125 | 125 | 250 | 299 | 250 | 210 | 8-M16 | ||
| LXLC-150 | 150 | 300 | 319 | 285 | 240 | 8-M20 | ||
| LXLC-200 | 200 | 350 | 346 | 340 | 295 | 8-M20(1.0MPa) | ||
| LXLC-200 | 200 | 350 | 346 | 340 | 295 | 12-M20(1.6MPa) | ||
| LXLC-250 | 250 | 400 | 434 | 395 | 350 | 12-M20(1.0MPa) | ||
| LXLC-250 | 250 | 450 | 434 | 405 | 355 | 12-M24(1.6MPa) | ||
| LXLC-300 | 300 | 450 | 459 | 445 | 400 | 12-M20(1.0MPa) | ||
| LXLC-300 | 300 | 500 | 459 | 460 | 410 | 12-M24(1.6MPa) | ||
