Nominal size: DN15-600mm
Thickness: SCH5S-SCHXXS
Standard: ASME/ANSI, DIN, JIS BS,JB, SH, HG, such as ASME/ANSI B16.9, ASME/ANSI B16.11, ASME/ANSI B16.28, ASME B16.5, ASME B16.3-1998, MSS SP-43, MSS SP-83, MSS SP-97, GB/T12459－2005, GB/T13401－2005, SH3408, SH3409, SH 3410, HG/T21635, DL/T695, SY/T0510, DIN2617
Material:1Cr18Ni9Ti、0Cr18Ni9、00Cr19Ni10、00Cr17Ni14Mo2、301、310、304、 304L、18-8、321、316、316L、904L、2205、S31803、S32750 etc.
Surface: pickling, annealed, polished and sandblast finishing
Test: material quality, welding quality, level and verticality, non-destructive testing, water pressure test
Nominal size: DN15-600mm
Thickness: SCH5S-SCHXXS
Standard: ASME/ANSI, DIN, JIS BS,JB, SH, HG, such as ASME/ANSI B16.9, ASME/ANSI B16.11, ASME/ANSI B16.28, ASME B16.5, ASME B16.3-1998, MSS SP-43, MSS SP-83, MSS SP-97, GB/T12459－2005,GB/T13401－2005, SH3408, SH3409, SH 3410, HG/T21635,DL/T695,SY/T0510, DIN2617
Material:1Cr18Ni9Ti、0Cr18Ni9、00Cr19Ni10、00Cr17Ni14Mo2、301、310、304、 304L、18-8、321、316、316L、904L、2205、S31803、S32750 etc.
Surface: pickling, annealed, polished and sandblast finishing
Test: material quality, welding quality, level and verticality, non-destructive testing, water pressure test
Standard | ASME/ANSI B16.9, DIN2650,2615,2616,2617,JIS B2311, 2312,2313, EN 10253-11, EN10253-2, GB |
Size | 1/2—48 |
Thickness | SCH10, SCH20, SCH30, SCH STD, SCH40, SCH60, SCH XS, SCH80, SCH100, SCH120, SCH140, SCH160, SCH XXS |
Type | Elbow, tee, reducer, nipple, plug, union, bushing, cap, etc |
Surface | Transparent oil, rust-proof black oil, hot galvanized |
Heat Treatment | Annealed: Bright annealed, Spheroidize annealed, Normalized, Stress relieved, Cold finished, Quenched and Tempered |
End Protector | 1. Plastic caps (small OD) |
2. Iron protector (large OD) | |
Application | Fluid pipe, oil pipe, gas pipe, structure pipe, boiler tubes |
Test | Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, Hydro static Test, X-ray Test. |
Remark | Special design available according to requirement |

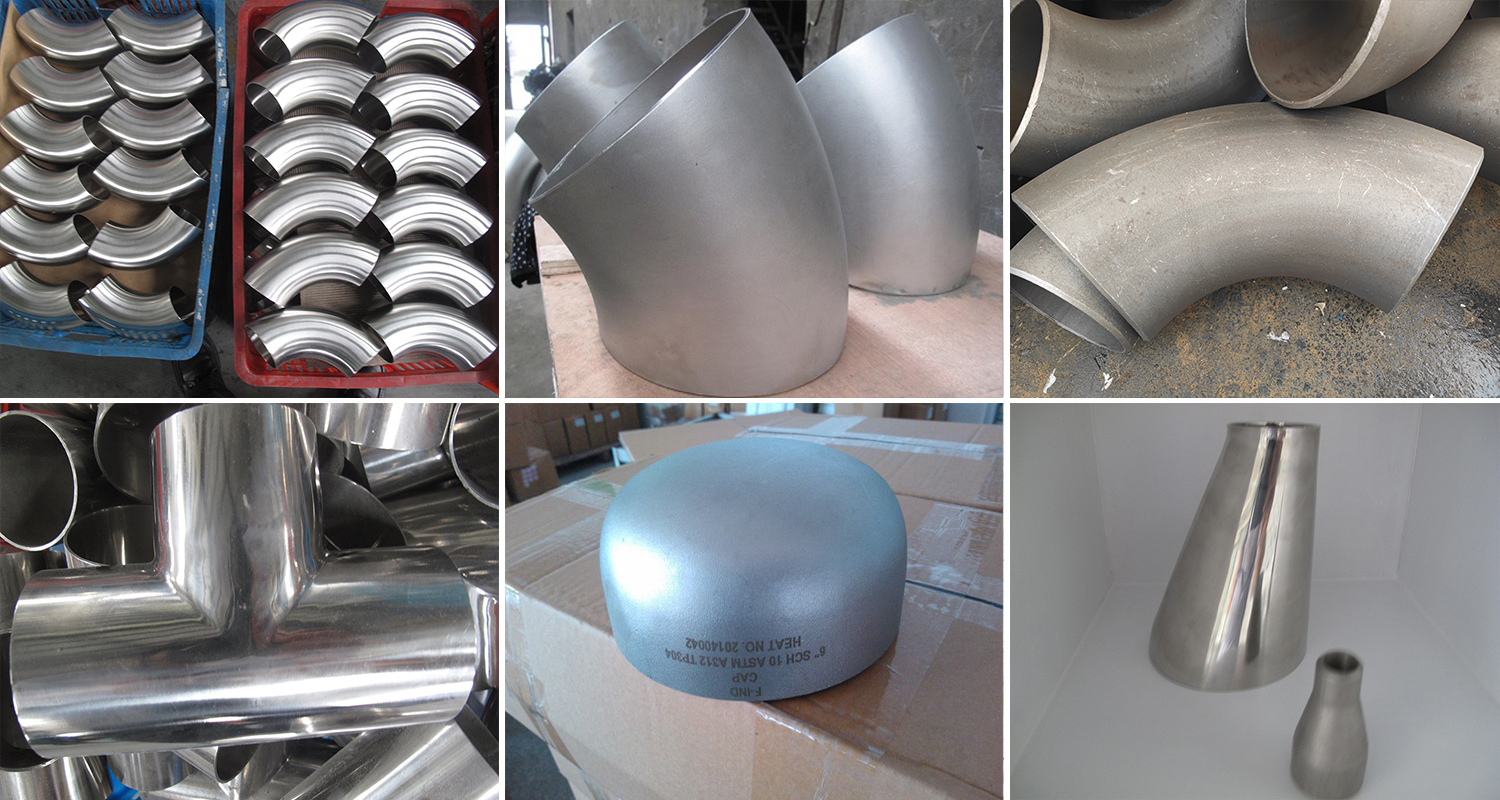

Cap, also known as the head, the plug, the tube cover, It is a pipe fitting which is welded at the end of the pipe or covered in the external thread of the pipe. It is used to close the pipeline, same with the role of the block. The convex cap includes hemispherical cap, oval cap, saucer cap and sphere crown cap.
Elbow is a pipe fitting which changes the direction of the pipe. The angle, 45 °, 90 ° and 180 °are the most commonly used elbow. According to its radius of curvature to points, it can be divided into long radius elbow and short radius elbow.
Tee is mainly used to change the direction of the fluid, used in the branch of main pipeline. It can be divided into T-shaped and Y-shaped Tee. According to the diameter equality it can be divided into equal Tee and Reducing Tee.
Reducer is a pipe fitting in a pipeline that reduces the pipe size from a larger to a smaller bore (inner diameter). According to the shape, it can be divided into concentric reducer and eccentric reducer. Stub end, is also called lap joint or Vanstone flared lap, One end is for the welding connection side, the other end is connected to the core of the loose flange to extend the pipeline.
We offer a wide range of fittings such as elbows, tees, reducers, couplings, and more, all available in various sizes and dimensions to fit different pipe sizes and systems. Our fittings are designed with precision and accuracy, guaranteeing a perfect fit and leak-free joints.
Our Stainless Steel Pipe Fittings are suitable for use in various industries, including chemical processing, food and beverage, oil and gas, and more. They are ideal for use in high-pressure and high-temperature systems, where strong and dependable connections are crucial.
We stand behind the quality and durability of our Stainless Steel Pipe Fittings, and guarantee to deliver top-quality products that meet the highest industry standards. Our fittings are competitively priced, making them an excellent choice for those looking for both quality and affordability.
All in all, if you're looking for reliable and high-quality Stainless Steel Pipe Fittings, look no further. Contact us today to learn more about our products and how we can provide you with the best solution for your specific needs.
