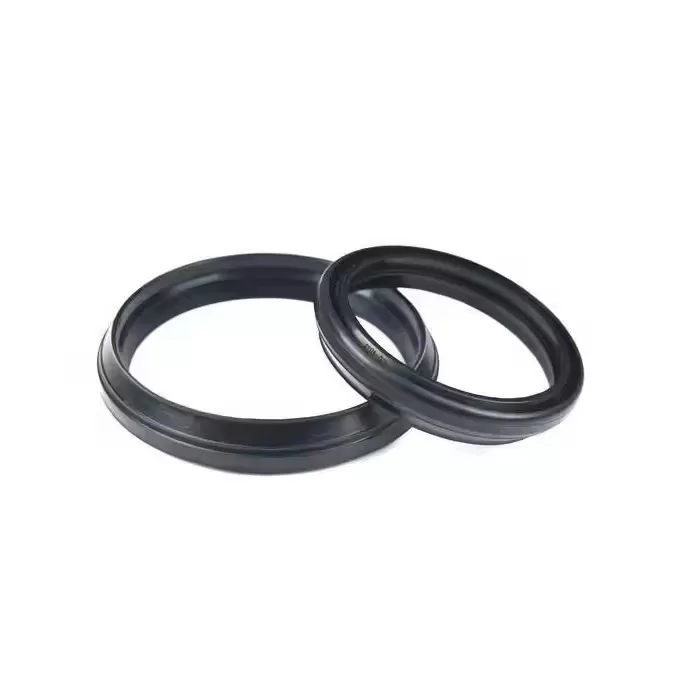

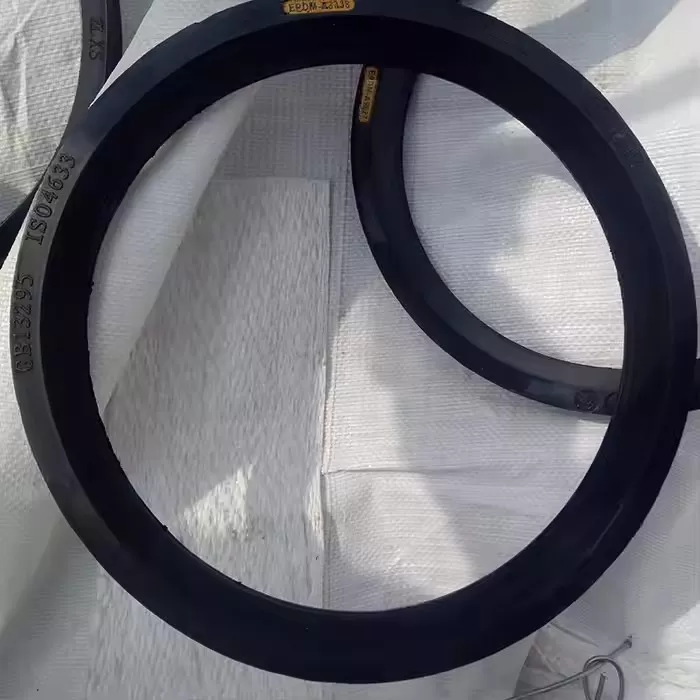

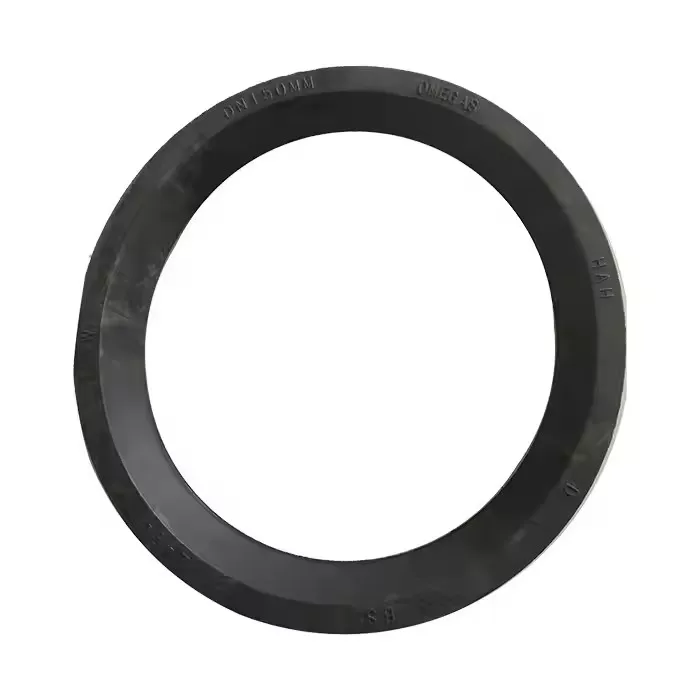

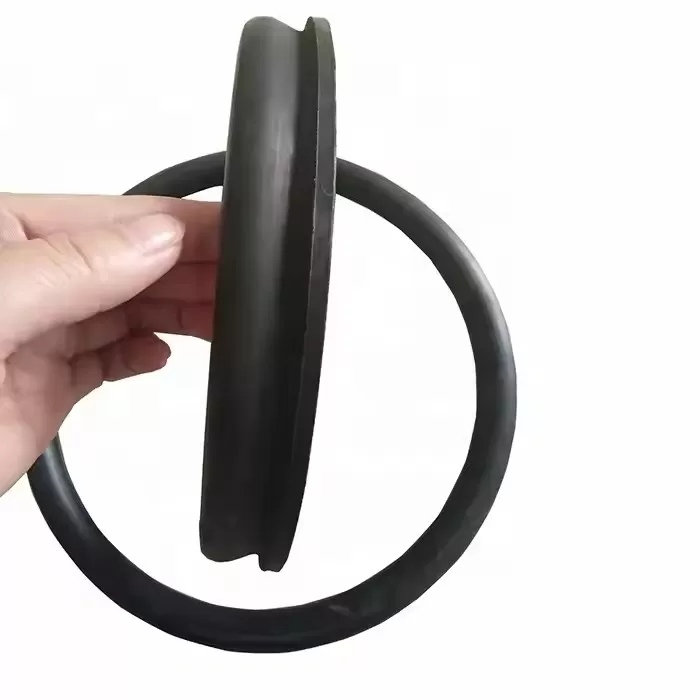

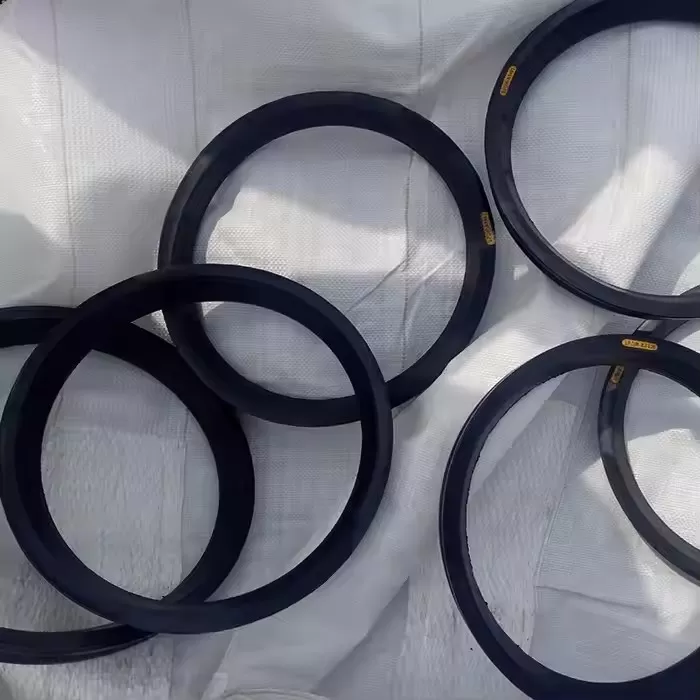

Rubber Gaskets

Application:


Electronic field, industrial machine & equipment, house-hold appliance, tele-communication, automobile, medical equipment industry etc, flange gaskets, T type rubber rings, use for sealing.


Rubber gaskets are designed to provide a tight and secure seal between two surfaces. These gaskets are commonly made from materials like silicone, neoprene, and EPDM, among others. Rubber gaskets are used in a wide range of industries, including automotive, construction, and manufacturing...

Share:

Application:


Electronic field, industrial machine & equipment, house-hold appliance, tele-communication, automobile, medical equipment industry etc, flange gaskets, T type rubber rings, use for sealing.


Specification:


ItemSpecification
Operating conditionPN: 1.0/1.6/2.5 Mpa
The water temperatureup to 120℃
MaterialEPDM/NBR/NR/SILICONE,Viton
SizeDN20-DN2000
StandardBS, DIN, ANSI, JIS or others provided drawing samples
MediaHot Air, SO2, Steam, Water, Oil, Acid, Gas And etc.
hardness20 ~ 90  shore A
craftCompression,  injection, extrusion


Features:


NBRexcellent resistant to oil, widely used in industrial area
EPDMexcellent resistance to weather and ozone, good resistance to heat, low temperature and chemical
NRhigh elasticity, good chemical strength
CRgenerally good resistance to ozone, aging, and chemical, good mechanical properties over a wide temperature range
SBRshock resistance, performance well in adhesion and sealing
Siliconewidest operating temperature range, performance stably in high and low temperature, widely use in food sealing area
VT/FKMexcellent resistance to high temperature and a broad range of chemical, permeability and compression set are excellent
HNBRthermal stability and oxidation resistance
IIRlow permeability rate and good electrical properties
FVMQwidest operating temperature range,performance stably in high and low temperature, good resistance to oil and fuel
ACMgood resistance to mineral to oil, oxygen and ozone


Rubber Gaskets


Rubber Gaskets


Rubber gaskets are important sealing components in pipeline systems. They can prevent fluid leakage and ensure the safe and stable operation of pipeline systems.


Types of Materials


Ethylene Propylene Diene Monomer (EPDM): EPDM rubber is known for its excellent heat and ozone resistance. It can withstand animal and vegetable oils, as well as strong oxidizing chemicals, making it suitable for pipeline systems that operate under complex temperature and chemical conditions.


Natural Rubber (NR): Natural rubber exhibits outstanding dynamic sealing performance along with strong tear and wear resistance. It can tolerate most medium-strength chemicals and organic acids, making it ideal for dynamic pipeline connections that require high sealing performance.


Nitrile Butadiene Rubber (NBR): NBR has good resistance to petroleum-based fluids, such as gasoline, and is also effective against fats, oils, greases, and hydraulic oils. This material is commonly used in pipeline systems within the petrochemical industry and fuel transportation sectors.


Product Types


O-Type Rubber Gaskets: These gaskets feature a circular cross-section and a simple structure, providing high sealing performance. They are standardized for easy installation and replacement, making them suitable for sealing in fixed, reciprocating, and rotating motions.

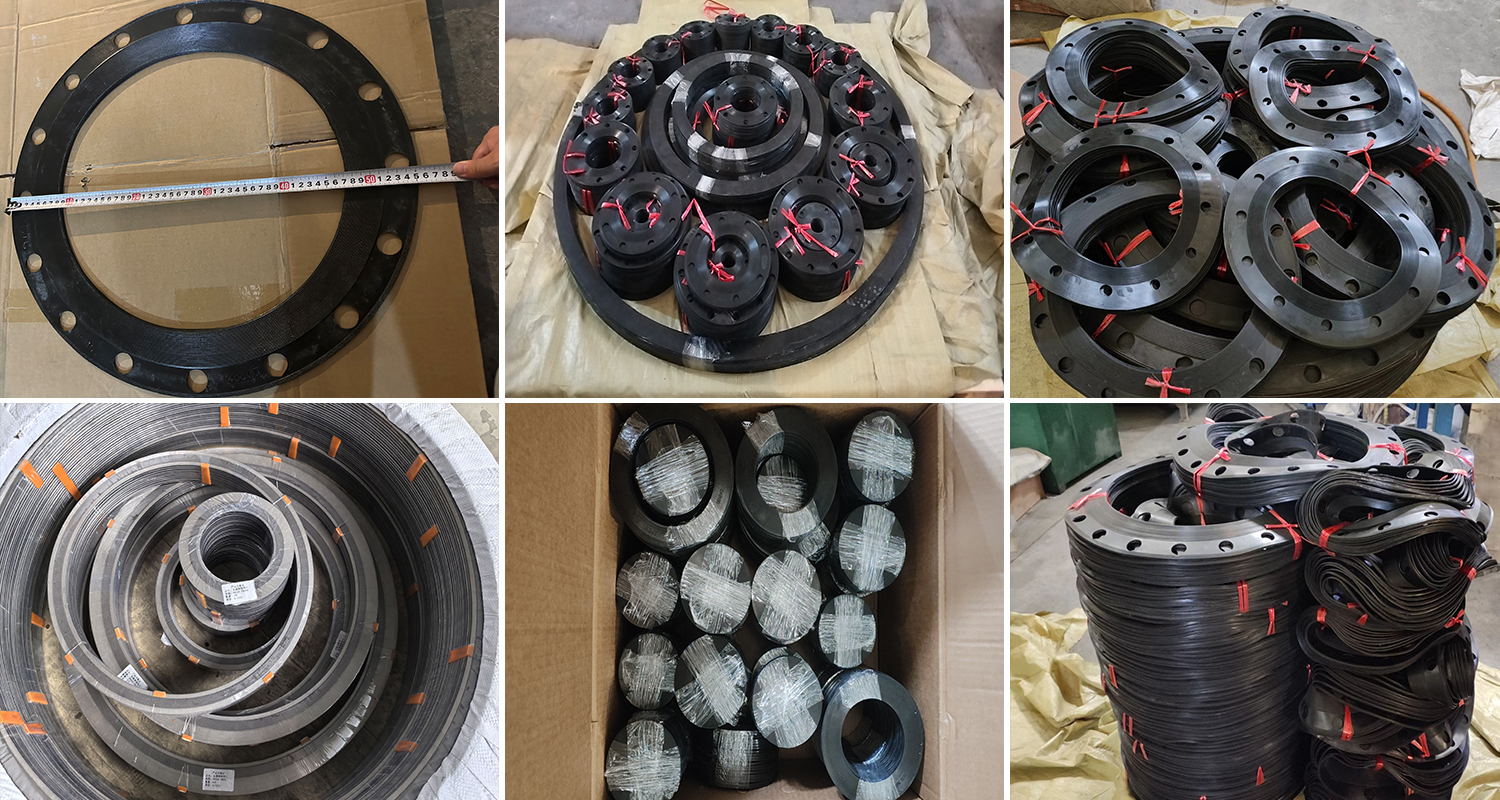

Flange Rubber Gaskets: Designed for sealing at the flange connections of pipelines, these gaskets come in various sizes and materials according to different flange standards and working conditions, capable of withstanding specific pressure and temperature requirements.


Rubber Sealing Ring Gaskets: Used primarily for sealing concrete pipeline joints, these gaskets accommodate different joint configurations and comply with relevant ASTM standards.


Features and Advantages


Excellent Sealing Performance: Rubber gaskets effectively prevent liquid and gas leaks in pipelines, maintaining a strong seal even in low-temperature, low-pressure, and mild chemical environments, which ensures the reliable operation of pipeline systems.


Outstanding Flexibility: With good elasticity, these gaskets can adapt to slight deformations caused by temperature changes, vibrations, and other factors. This quality helps prevent breakage and ensures the durability of the seal.


Easy Installation: Many rubber gaskets come with an adhesive backing for direct application. Even those without adhesive are easy to install, requiring no complex tools or specialized techniques.


Application Fields


Chemical Industry: Rubber gaskets are utilized in pipelines that transport various chemical media. Their chemical corrosion resistance ensures leak-free operation, contributing to production safety.


Oil and Natural Gas Industry: In pipeline systems involved in oil extraction, transportation, and processing, rubber gaskets resist the corrosive effects of oils and other chemicals, maintaining the integrity of the pipelines.


Water Supply and Drainage: Whether for urban water supply or sewage discharge, rubber gaskets provide effective sealing, preventing water leakage and ensuring the normal function of water supply and drainage systems.


Food and Beverage Industry: Gaskets that meet food hygiene standards are used in transportation pipelines for food and beverages, ensuring that products are not contaminated and maintaining food safety.
