Universal Flange Adaptor

Specification

Standard: ISO2531，EN545

Pressure: PN10/PN16

Body material: Ductile iron with FBE ( fusion bonded epoxy) coating or Epoxy painting; Gaskets are NBR or EPDM;

Bolts and Nuts: Carbon steel with galvanized zinc plated G4.8/G8.8, or SS304/SS316.

Package: wooden cases and protection layer.

Application:

Universal coupling is also called wide range coupling, tolerance range coupling. It can fit most standard pipe materials and therefore dramatically reduces the stocks of dedicated couplings. It is suitable for steel, GRP, PVC, Ductile Iron, Cast Iron and Asbestors Cement pipes.

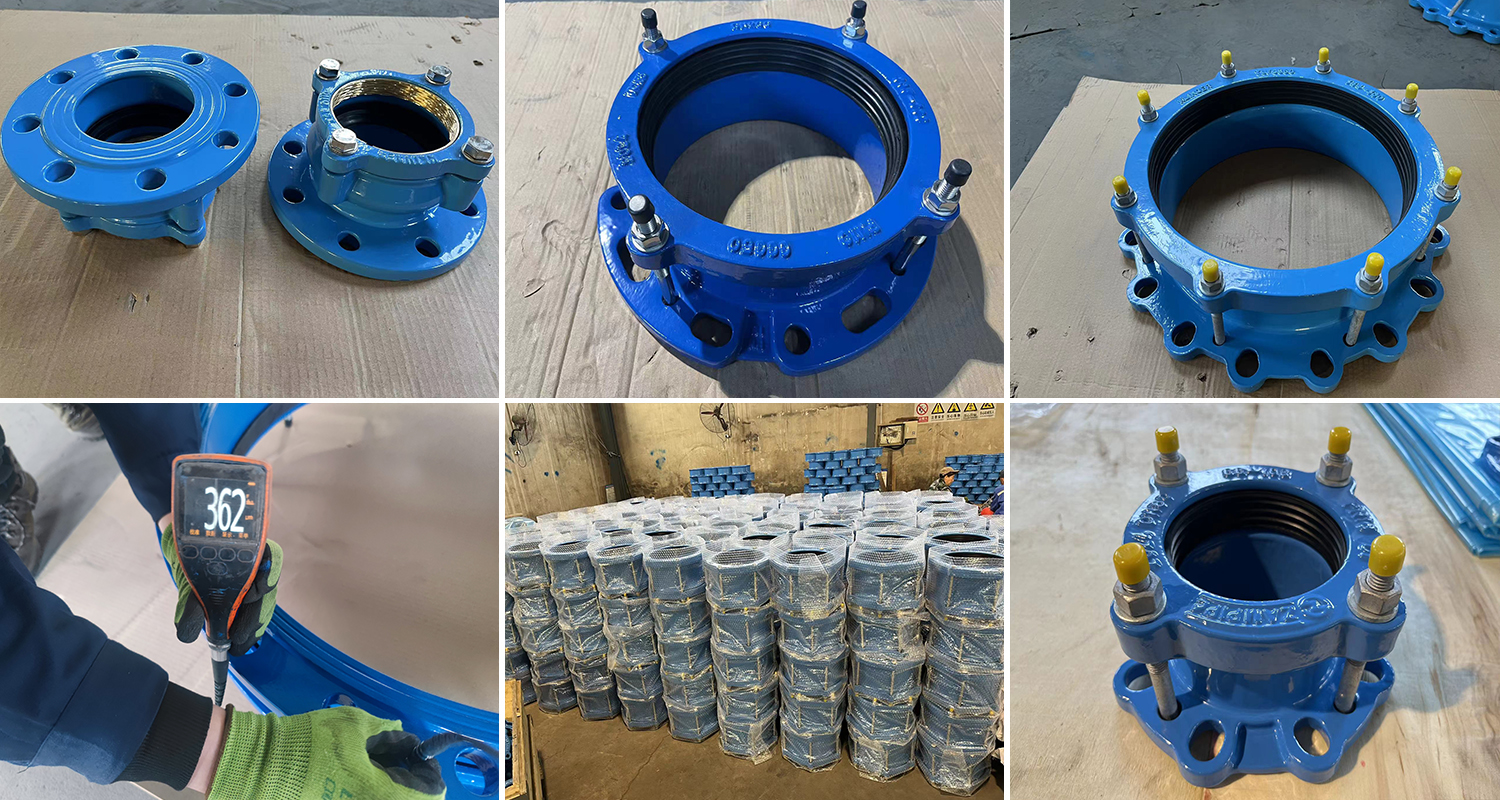

Universal Flange Adaptor

Universal Flange Adaptor

Universal flange adaptors are suitable for jointing pipes with different outside diameters and will accommodate ANSI, DIN and BS flange drillings. Bolts are in carbon steel grade 4.8 with dacromet coating or according to customer's request.

The Universal Flange Adaptor is a vital component in piping and mechanical connection systems. It plays a crucial role in facilitating seamless connections and ensuring efficient transmission in various industrial applications.

Superior Material and Durability: Manufactured from high-quality alloy steel or other corrosion-resistant materials, the universal flange adaptor can endure harsh working environments, including high temperatures, high pressures, and corrosive media. It has excellent resistance to wear, fatigue, and corrosion, guaranteeing a long service life and reliable performance.

Versatile Design and Functionality: This product is designed with a unique structure that allows for easy connection and disconnection of pipes or mechanical components. It can accommodate different flange sizes and types, providing great flexibility in installation. By using a universal flange adaptor, the misalignment and axial displacement between connected components can be effectively compensated, ensuring stable operation of the system.

Easy Installation and Maintenance: The installation process of the universal flange adaptor is straightforward. It usually requires only basic tools and can be quickly assembled and disassembled, reducing installation time and labor costs. Routine maintenance is also simple, with low requirements for maintenance personnel and equipment, which helps to improve the overall efficiency of the system.

Wide Range of Applications: Universal flange adaptors are widely used in various industries, such as petroleum and petrochemical, chemical engineering, water supply and drainage, power generation, and metallurgy. They are suitable for connecting pipes, valves, pumps, and other equipment, providing reliable connection solutions for different systems.

All in all, the universal flange adaptor is an essential device that combines excellent performance, easy installation, and wide applicability. It is the preferred choice for ensuring the reliable operation and efficient transmission of piping and mechanical systems.
