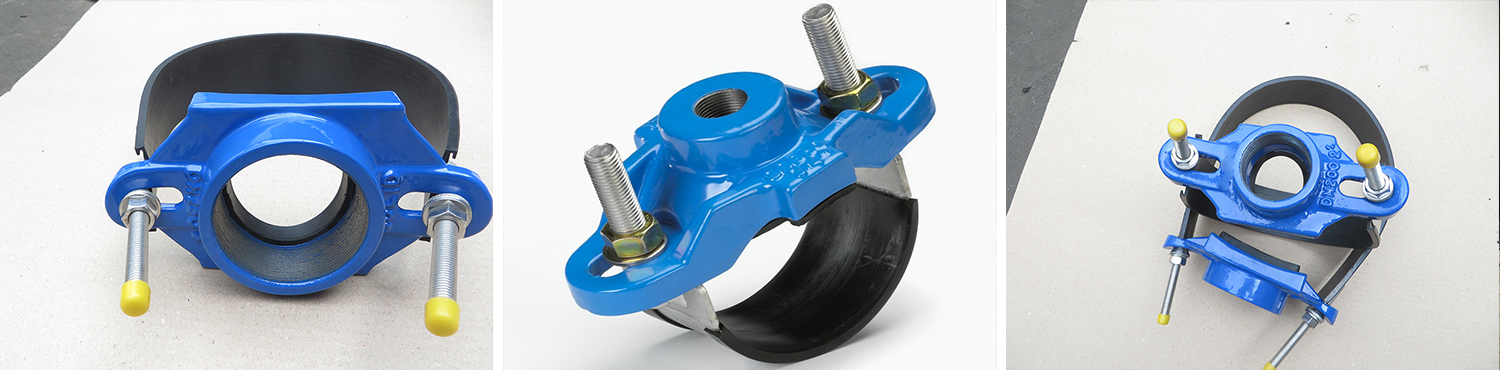

Tapping Saddle With SS Belt

Feature

Standard: ISO2531, EN545

Pressure: PN10/PN16

Body material: Ductile iron with FBE ( fusion bonded epoxy) coating or Epoxy painting; Gaskets are NBR or EPDM;

Belt: SS304

Bolts and Nuts: SS304

Package: wooden cases and protection layer

Application: Tapping saddle is for connecting PVC, PE, steel, DI, AC, GRP pipes. The outlet can be  thread to connect with pipes, valves etc.

Tapping Saddle With SS Belt

I. Product Structure and Core Components

Main Body Material: Usually made of ductile iron or high-strength plastic, it has good pressure resistance and corrosion resistance, and can be adapted to various pipeline materials.

Stainless Steel (SS) Belt: As the core fastening component, it is made of high-quality stainless steel, which has excellent rust resistance and high strength. It can tightly wrap the outer wall of the pipeline to ensure a firm fit between the saddle and the pipeline.

Sealing Assembly: Built-in rubber gaskets that are oil-resistant and chemical-resistant. Under the fastening force of the stainless steel belt, a reliable sealing surface can be formed to prevent medium leakage.

Tapping Interface: Pre-set threaded or flanged interfaces, which can connect branch pipelines or install valves, instruments, etc., according to needs. The interface sizes are diverse, adapting to different branch pipe diameters.

II. Working Principle

The tapping saddle with a stainless steel belt is mainly used to quickly open branch pipelines on existing pipelines without cutting off the main pipe.

Precisely drill a hole in the main pipe through the saddle's built-in tapping device. After completion, remove the tapping tool and close the valve of the branch interface to realize the connection of the branch pipeline.

The continuous fastening force of the stainless steel belt and the elastic compensation effect of the gasket ensure that good sealing performance can still be maintained when the pipeline pressure fluctuates or there is slight displacement.

III. Product Features

Reliable Sealing: The multi-layer sealing structure can effectively resist the pressure of the medium in the pipeline, reducing the risk of leakage.

Wide Versatility: It is compatible with various main pipe materials, and the branch interface can flexibly match threaded, flanged, and other connection methods to meet the branch needs of different engineering scenarios.

IV. Application Scenarios

Municipal Water Supply and Drainage Engineering: Used for branch transformation of urban water supply and drainage pipelines, such as new residential area branch pipes, green belt irrigation branch pipes, etc.

Industrial Pipeline Systems: In the process pipelines of chemical, petroleum, electric power, and other industries, quickly connect sampling pipes, return pipes, or branch pipelines to new equipment.

Agricultural Irrigation Systems: Open branches on the main water delivery pipes to connect field irrigation branch pipes, adapting to the flexible layout needs of farmland irrigation.

Old Pipe Reconstruction and Emergency Repair: When expanding branches or repairing old pipelines, it avoids problems such as water and gas cuts caused by cutting the main pipe, and reduces engineering costs.

V. Selection Points

Select the appropriate saddle specification according to the main pipe diameter and material.

According to the pressure, temperature, and chemical properties of the medium in the pipeline, select products with corresponding pressure levels and gasket materials.

Clarify the type and size of the branch interface to ensure a match with the branch pipeline.

With its efficient, reliable, and universal characteristics, the tapping saddle with stainless steel belt has become an ideal choice for branch transformation and expansion of pipeline systems, and is widely used in municipal, industrial, agricultural, and other fields.
