Quick Adaptor for PVC

Specification

Standard: ISO2531，EN545

Pressure: PN10/PN16

Body material: Ductile iron with FBE ( fusion bonded epoxy) coating or Epoxy painting; Gaskets are NBR or EPDM;

Bolts and Nuts: Carbon steel with galvanized zinc plated G4.8/G8.8, or SS304/SS316.

Package: wooden cases and protection layer.

Application:

Quick adaptor is used for connecting PVC pipe.

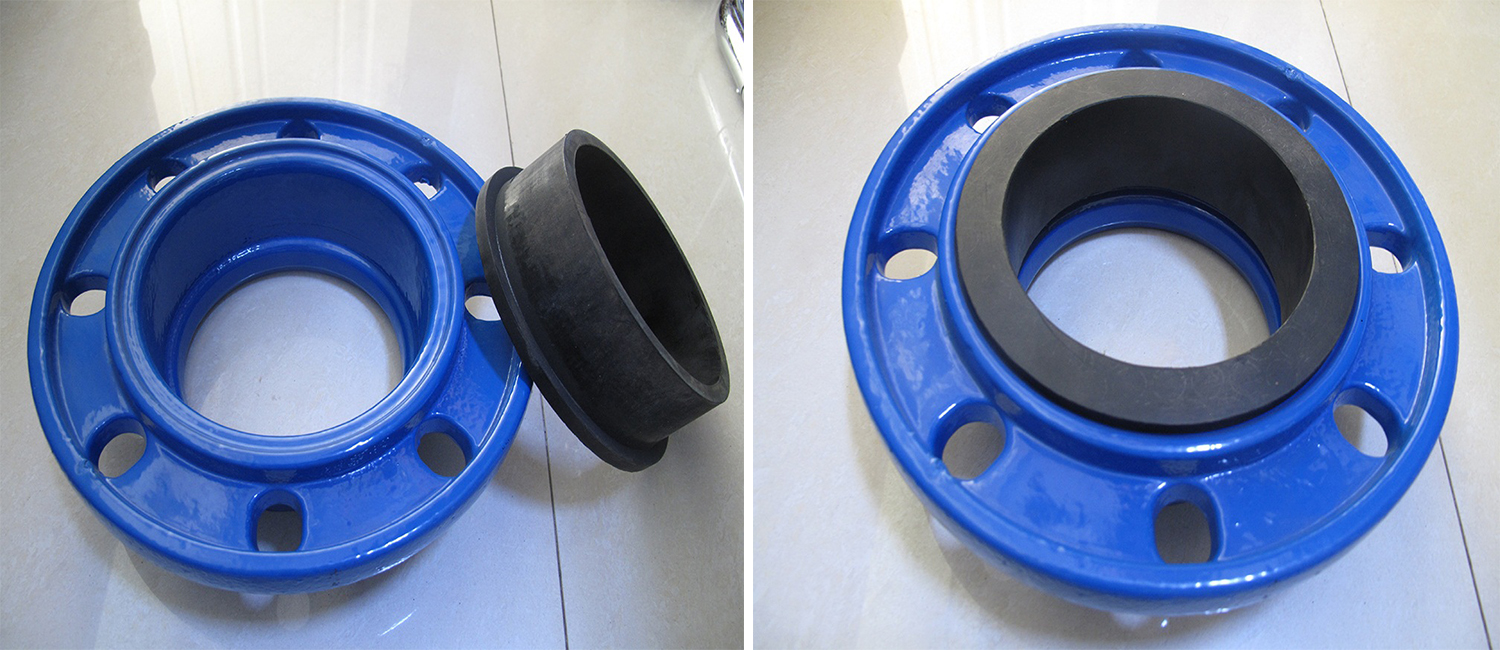

Quick Adaptor for PVC

Quick Adaptor for PVC

Quick Adaptors are designed for use on air, water, sewer and gas pipelines. The adaptors are for joiniting with PVC or PE pipes. Quick Adaptors can be manufactured to special flange drilling such as BS4504 PN10, 16, 25, 40, BS10 Table D, E and F or ANSI flange drilling. A Quick Adaptor for PVC is a specialized fitting designed to simplify and expedite the connection of PVC pipes in various applications.

Structure

The adaptor is typically made from high-quality materials that are compatible with PVC. This could be a durable plastic compound engineered to match the chemical and physical properties of PVC. It often has a two-part design. One part features a socket-like structure with an inner diameter precisely sized to fit snugly over the outer diameter of the PVC pipe. The other part may have a threaded end, a slip-fit connection for joining to other fittings, or a flange for more rigid connections.

Function and Benefits

Rapid Installation: As the name implies, it enables quick and easy connection of PVC pipes. This eliminates the need for time-consuming processes like solvent welding. Installers can simply push or twist the PVC pipe into the adaptor, significantly reducing installation time and labor costs.

Leak-Resistant: A well-designed quick adaptor forms a tight, leak-resistant seal. It may incorporate rubber gaskets or O-rings that compress against the PVC pipe, preventing any leakage of fluids or gases passing through the pipeline.

Versatility: It can be used in a wide range of PVC pipe applications, from plumbing systems in residential and commercial buildings to irrigation setups in agriculture and landscaping.

Applications

Plumbing Systems: In domestic and commercial plumbing, the quick adaptor is used to connect PVC pipes for water supply, drainage, and waste systems. It allows for easy repairs and modifications without the mess and wait associated with solvent welding.

Irrigation Networks: For agricultural and landscape irrigation, it provides a fast and reliable way to connect PVC pipes, enabling the efficient distribution of water. This is especially useful when setting up or adjusting irrigation layouts.
