Full SS Repair Clamp

Specification

Pressure: PN6/PN10/PN16

Type: Single band / double bands / triple bands

Body material: SS304/SS316

Lug: SS304/SS316

Bolts and Nuts: SS304/SS316

Package: wooden cases and protection layer.

Application:

The production can be used widely in the instant repair of pipes in these fields: water supply and sewerage, gas transfer, chemical industry, metallurgic industry, mineral industry, water power, marine. The prodcut can be applied over and underground to the pipe of different materials, such as cast iron, steel, plastic, cement and so on.

Performance of rubber gasket

Full SS Repair Clamp

A Full SS Repair Clamp is a crucial tool designed for effectively fixing damaged sections in pipelines. Here's a detailed look at it:

1. Construction

Material: As the name implies, it is made entirely of stainless steel (SS). Stainless steel offers excellent corrosion resistance, making it suitable for use in various environments, including those with exposure to moisture, chemicals, or harsh weather conditions. This ensures the long - term durability of the repair clamp.

Components: It typically consists of two semi - circular halves. These halves are designed to encircle the damaged part of the pipeline. Each half has a series of holes along its edges, which are used to align and fasten the two parts together using bolts and nuts.

2. Functionality

Sealing: The inner surface of the repair clamp often has a rubber or elastomeric lining. When the clamp is tightened around the pipeline, this lining presses firmly against the pipe's outer surface. This creates a tight seal, preventing any leakage of the fluid or gas flowing through the pipeline.

Structural Support: In addition to sealing, the stainless - steel body of the clamp provides structural reinforcement. It helps to distribute the internal pressure of the pipeline evenly around the damaged area, preventing further damage or potential pipe bursts.

3. Applications

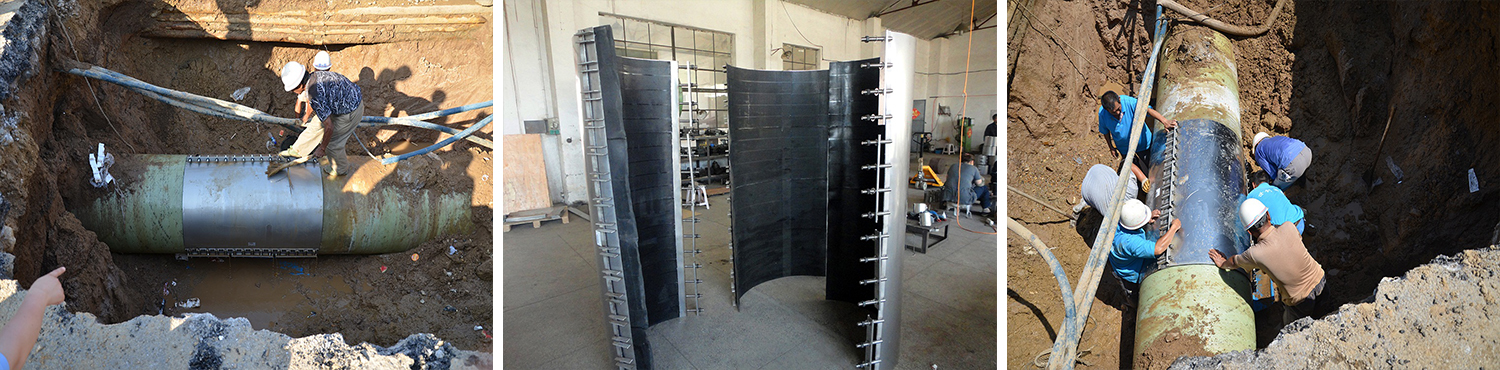

Water and Sewer Pipelines: In municipal water supply and sewer systems, the Full SS Repair Clamp can be quickly deployed to fix leaks caused by corrosion, ground movement, or external impacts. This allows for a relatively quick and cost - effective repair without the need for extensive pipeline replacement.

Industrial Pipelines: In industrial settings, such as chemical plants or refineries, where pipelines carry various substances, a leak can be a significant safety hazard. The repair clamp can be used to address minor to moderate damage, ensuring the continuous operation of the production process while minimizing downtime for major repairs.

4. Installation

The installation process is relatively straightforward. First, the damaged section of the pipeline is cleaned and prepared. Then, the two halves of the repair clamp are placed around the pipe, with the rubber lining in contact with the pipe surface. The bolts are inserted through the holes in the halves and tightened evenly, gradually applying pressure to seal the leak and reinforce the pipeline.
