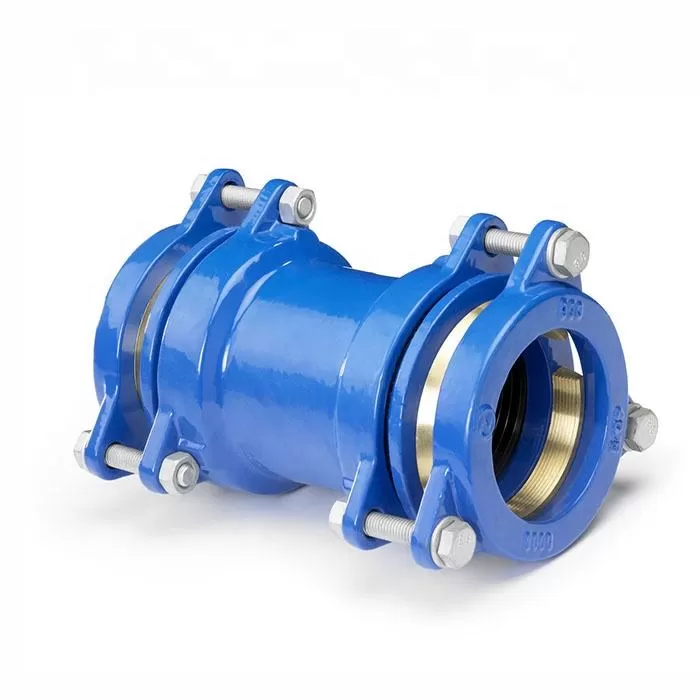

Dismantling Joint

Material and Coating

1) End rings-ductile iron to BS2789 grade 420/12, 500/7

2) Sleeve-ductile iron to BS2789 grade 420/12,500/7

3) Flange - ductile iron to BS2789 grade 420/12,500/7

4) Coating –fusion Bonded epoxy to SABS1217, minimum thickness 250 microns, colors in RAL5005, RAL5015, RAL3009, RAL9005, RAL9011 or others

5) Bolt coating- galvanized

Specification

Standard: ISO2531, EN545, ASTM

Pressure: PN10/PN16/PN25/PN40/PN64

Body material: Ductile iron with FBE ( fusion bonded epoxy) coating or Epoxy painting;

Bolts and Nuts: Carbon steel with galvanized zinc plated G4.8/G8.8, or SS304/SS316

Package: wooden cases and protection layer.

Gasket: Rubber seal-E.P.D.M Grade E to BS2494 1990 Type W&D

Application:

Dismantling joint is suitable for all flanged piping materials above ground or in chamber.

It enables easy installation and dismantling of isolating valves, non return valves, flow metering equipment , pumps etc. It compensates for axial displacement of the pipe during installation.

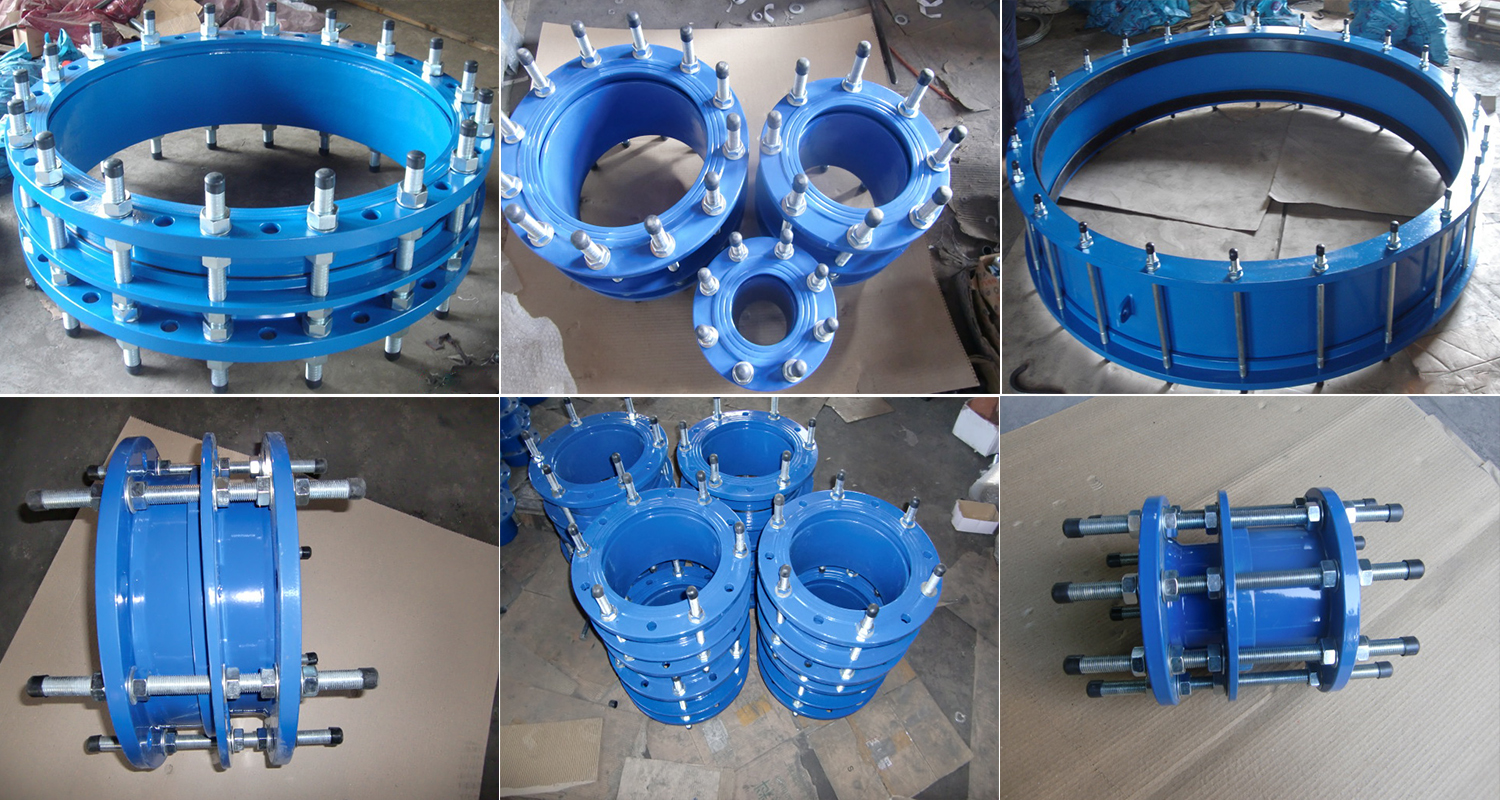

Dismantling Joint

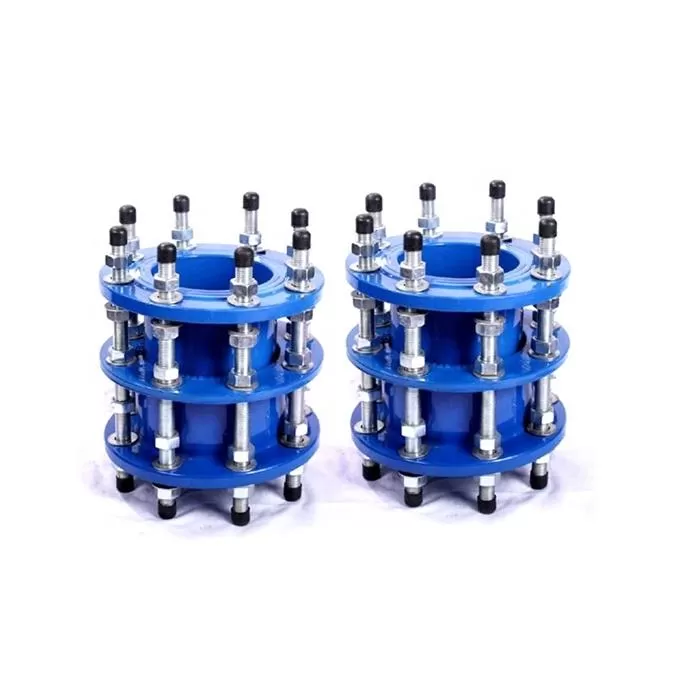

Dismantling Joint

Dismantling Joints are designed to provide a simple method of installation and removal of flanged pipeline components such as valves, pumps and strainers from a pipeline. Dismantling Joints allow a variable setting distance of 50mm on site and are supplied complete, ready to be installed. Dismantling Joints are restrained products that prevent axial pipe movement, they are most suited to valve and pump chambers, and complex steel fitting installations.

Structure

It typically comprises a body, sealing ring, gland, and short telescopic pipe. One side has a flange adapter for connection to pumps or valves via flanges. The detachable end features an f - piece or central flange, which is pushed into the flange adapter, with tie bars securing the flanges.

Features

Installation and Disassembly: It can be pre-adjusted to the right length, simplifying the installation and removal of pipeline components. This is highly beneficial during maintenance and repair.

Sealing: The elastic sealing ring, when the gland nut is tightened, presses firmly against the pipe's outer ring due to the mutual slope, ensuring a reliable seal.

Force Transmission: Once all nuts are tightened, it can transfer axial thrust to the pipeline, safeguarding valves and pumps.

Corrosion Resistance: Depending on the environment, it can be coated with anti-corrosion materials like FBE, epoxy, or epoxy glass flake coatings.

Applications

Maintenance: Ideal for situations where pipeline components such as valves, water meters, or flow meters need repair or replacement. Dismantling joints create a gap between flanges, enabling easy removal and installation.

Equipment Installation: Facilitates the setup of pumps and valves. It can adjust the position and length, ensuring smooth equipment operation.
