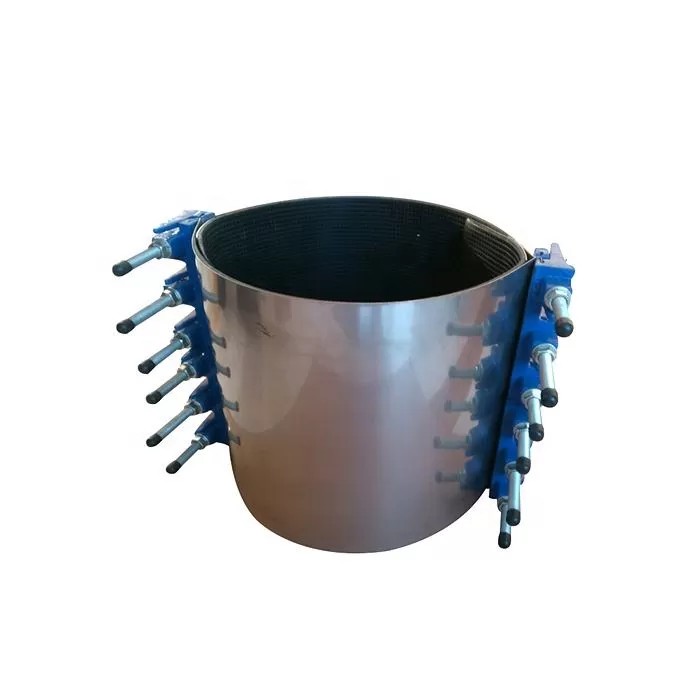

A pipeline leak never announces itself at a convenient time. It emerges under pressure, often in buried or hard-to-reach locations, and demands a repair solution that can be installed quickly and trusted for the long term. MIDAS offers a comprehensive range of repair clamps with ductile iron (DI) lugs, engineered to deliver permanent, reliable sealing on damaged pipe sections without the need for pipe replacement.
When a section of pipe develops a crack, corrosion pinhole, or joint leak, excavation and full replacement can be costly, time-consuming, and disruptive. A repair clamp provides an alternative: a wraparound sleeve that seals the damaged area while the pipe remains in service. The addition of ductile iron lugs elevates this solution to a higher level of performance.
Ductile iron lugs serve as the clamping mechanism's anchor points. Unlike standard carbon steel lugs, ductile iron offers superior tensile strength, impact resistance, and corrosion tolerance. This makes the clamp suitable for high-pressure applications and harsh environments where standard hardware might fail. The lugs are typically coated with fusion-bonded epoxy to further extend service life in buried conditions.
Ductile Iron Lugs — Precision-cast from GGG40/GGG50 ductile iron, the lugs provide robust anchoring points for the clamp bolts. Their high strength-to-weight ratio allows for secure tightening without deformation, ensuring even pressure distribution across the gasket.
High-Strength Bolts — Available in stainless steel or zinc-plated carbon steel, the bolts are sized to match the pressure rating of the clamp. They are designed to be tightened with standard tools, enabling rapid field installation.
Flexible Gasket — The sealing element is typically made from EPDM, NBR, or SBR, selected according to the media being conveyed. The gasket is pre-bonded to the clamp body for easy positioning and consistent sealing performance.
Corrosion-Resistant Body — The clamp body is manufactured from stainless steel or carbon steel with a fusion-bonded epoxy coating, providing durability in both exposed and buried installations.
Wide Application Range — Repair clamps with DI lugs are suitable for cast iron, ductile iron, steel, PVC, and HDPE pipes, making them a versatile solution for municipal and industrial networks.
MIDAS repair clamps with DI lugs are available in a range of sizes and pressure ratings to suit diverse pipeline requirements. The standard size range covers DN50 to DN600, with custom sizes available upon request. Pressure ratings typically reach PN10 and PN16, depending on the clamp configuration and gasket material. The clamp body is constructed from stainless steel or epoxy-coated carbon steel, while the lugs are cast from GGG40/GGG50 ductile iron. Sealing gaskets are offered in EPDM, NBR, or SBR to accommodate different media and temperature conditions. Bolts are available in stainless steel or zinc-plated carbon steel, and the entire assembly is manufactured in accordance with EN 14525 and ISO 2531 standards.
Installing a repair clamp with DI lugs is a straightforward process that requires no specialized welding equipment. The damaged section of pipe is cleaned and inspected, and the clamp is positioned over the affected area. The bolts are then tightened evenly, compressing the gasket against the pipe surface to create a watertight seal. The ductile iron lugs ensure that the clamping force is distributed uniformly, preventing over-compression at any single point.
This type of clamp is widely used in municipal water distribution networks, wastewater collection systems, industrial process piping, and irrigation lines. It is particularly valuable in emergency repair scenarios where rapid restoration of service is critical.
Every MIDAS repair clamp undergoes rigorous quality control before shipment. Our production processes include chemical composition verification, dimensional inspection, coating thickness measurement, and hydrostatic pressure testing. Complete Material Test Certificates and inspection reports are provided for every batch, ensuring full traceability and compliance with international standards.
As a global supplier, MIDAS supports international clients with flexible trade terms, customized packaging, and comprehensive technical documentation.
MIDAS repair clamps with ductile iron lugs deliver a practical, durable, and cost-effective solution for pipeline leak repair. With robust construction, corrosion-resistant materials, and reliable sealing performance, they are trusted by utilities and contractors worldwide for keeping critical pipelines operational.
