PVC valves play a crucial role in piping systems, serving as shut-off valves, flow regulators, and backflow preventers. The quality of their installation directly affects the reliability of system sealing and operational life. For the three main connection methods—threaded, solvent cement, and flanged—each has its own process specifications and operational requirements.
Suitable for PVC valves with DN50 and smaller diameters, using tapered pipe threads to achieve sealing.
Key Process Points:
· Threading: Use dedicated dies for thread cutting. Thread surfaces shall be complete, free of broken threads or burrs. Thread length shall conform to standard specifications.
· Sealing Material: PTFE thread seal tape or dedicated PVC thread sealant is recommended. Apply 2–3 layers of tape in the direction of the threads, avoiding excessive thickness that may cause valve body cracking.
· Tightening Torque: Hand-tighten until the sealing surfaces make contact, then tighten an additional 1–2 turns using tools. Over-tightening is strictly prohibited to prevent stress cracking at the thread root of the valve body.
· Inspection: A hydrostatic pressure test shall be conducted after installation to verify that no leakage occurs at the joint.
Suitable for socket connections of the same material and size. This is the most commonly used method for joining PVC valves to pipes.
Key Process Points:
· Surface Preparation: Use fine sandpaper or a dedicated cleaner to abrade the outer wall of the pipe and the inner wall of the valve socket, removing oxide layers and oil contamination to create a suitable bonding surface.
· Cement Application: After applying primer, if required, apply PVC solvent cement evenly. Apply one layer to the pipe end and one to the socket inner wall. The amount applied shall be sufficient without running.
· Insertion and Curing: Immediately after cement application, insert the pipe into the socket with a twisting motion until it reaches the bottom. Hold for 15–30 seconds to prevent push-back. Curing time depends on ambient temperature; at room temperature, a 24-hour curing period is recommended.
· Environmental Requirements: Solvent cement vapors are flammable. The work area shall be well ventilated. Under low-temperature or high-humidity conditions, curing time shall be appropriately extended.

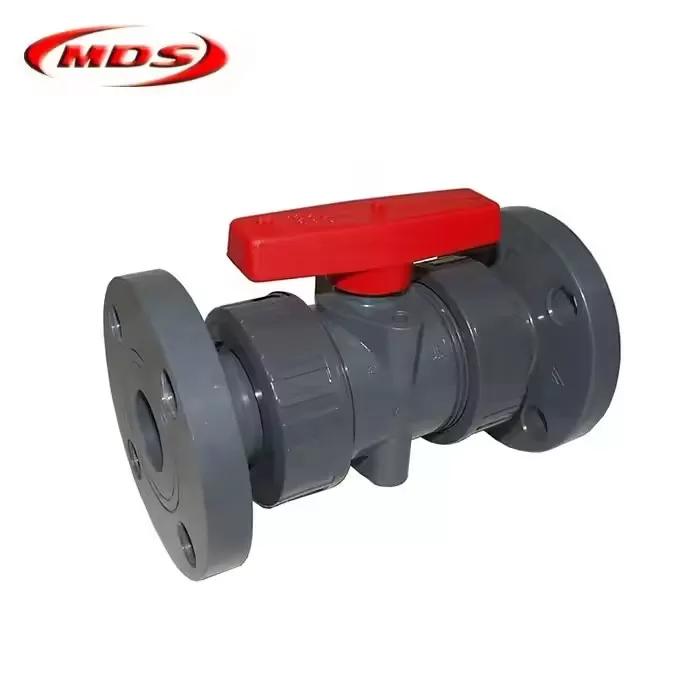

Suitable for large-diameter PVC valves (DN65 and above) or applications requiring regular disassembly for maintenance.
Key Process Points:
· Flange Inspection: Ensure that the sealing surfaces of both the valve flange and the pipe flange are flat, free from scratches or deformation. EPDM or NBR rubber gaskets are recommended.
· Bolt Tightening: Tighten bolts in a cross-pattern sequence, in 2–3 incremental passes. Avoid over-tightening on one side, which may cause flange misalignment or gasket extrusion.
· Alignment Requirement: The centerlines of the two flanges shall be aligned, with deviation controlled within 1 mm. Forced alignment will impose additional stress on the valve body, increasing the risk of cracking.
· Operational Maintenance: Bolts shall be re-tightened periodically during long-term operation to compensate for gasket creep and maintain effective sealing.
Proper connection methods are the foundation for the safe operation of PVC valves. Threaded connections require control of tightening torque; solvent cement connections depend on surface preparation and curing time; flanged connections emphasize alignment accuracy and bolt tightening sequence. Installers shall strictly follow the above specifications and perform pressure testing after installation to confirm a leak-free system.
