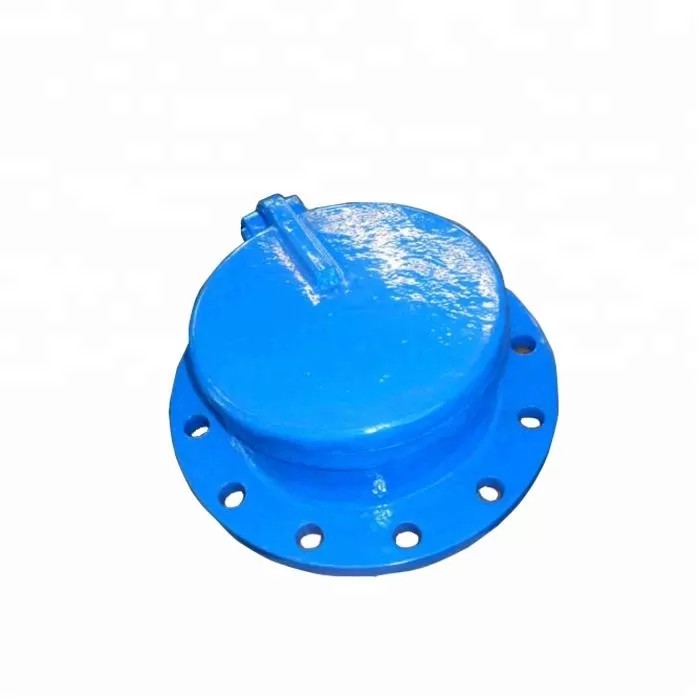

Optimization of Flap Valve Sealing Performance: From Structural Design to Material Selection

As a core component in pipeline systems for preventing medium backflow, the sealing performance of flap valves directly determines system operating efficiency, medium loss, and safety stability. Seal failure is prone to causing leakage, pressure loss, medium contamination, and other issues. Especially under working conditions such as high pressure, corrosive media, or frequent opening and closing, optimizing sealing performance has become a key aspect of product design and application. This article analyzes the optimization path of flap valve sealing performance from two major dimensions—structural design upgrading and scientific material selection—combined with practical industrial application scenarios.

Structural design is the foundation for ensuring sealing effectiveness, which needs to focus on sealing contact precision, pressure adaptability, and fatigue resistance. Firstly, optimizing the sealing surface structure is crucial: adopt a conical sealing surface instead of the traditional flat design. Utilizing the self-tightening principle of medium pressure, the higher the pressure, the tighter the sealing surface fits, making it suitable for high-pressure working conditions. Introduce mirror polishing technology in sealing surface processing to control the surface roughness below Ra0.8μm, reducing medium penetration gaps. Secondly, the fit precision between the valve flap and valve seat must be strictly controlled. Through 3D modeling and finite element analysis, optimize the opening and closing trajectory of the valve flap to ensure full contact of the sealing surface when closed, avoiding leakage caused by uneven local stress. Add an elastic compensation structure, such as embedding stainless steel spring sheets at the root of the valve flap, to offset deformation after long-term use and maintain the stability of sealing pressure. For large-diameter flap valves, a multi-flap structural design should be implemented to distribute the pressure across the sealing surface, thereby reducing the sealing load on any single area and enhancing overall sealing reliability.

Material selection needs to balance sealing performance, working condition adaptability, and service life to achieve "optimal use of materials." The sealing surface material must be accurately matched according to the medium characteristics: for neutral media such as clean water and normal-temperature gas, nitrile butadiene rubber (NBR) or natural rubber is preferred, which has good elasticity and sealing fit with outstanding cost-effectiveness. For high-temperature (above 120℃) or oil-based media, fluororubber (FKM) is a priority choice due to its excellent temperature resistance and oil resistance, which can avoid seal failure caused by material swelling. In corrosive working conditions such as strong acids and alkalis, polytetrafluoroethylene (PTFE) or reinforced composite materials are selected, combined with 316L stainless steel valve seats, to achieve dual protection of corrosion resistance and sealing. The main material of the valve flap needs to balance strength and sealing performance: cast iron is suitable for low-pressure and normal-temperature scenarios, stainless steel (304/316) is adapted to medium-high pressure and corrosive environments, while duplex stainless steel can meet the strength and corrosion resistance requirements under extreme working conditions. Meanwhile, adopt a composite structure of "metal skeleton + elastic sealing layer" to ensure the structural strength of the valve flap and improve the sealing fit through the deformation compensation of the elastic layer.

In addition, the collaborative optimization of structure and materials is indispensable. For example, under high-pressure and corrosive working conditions, a conical sealing surface structure combined with a fluororubber sealing layer is adopted to leverage the superimposed effect of structural self-tightening and material corrosion resistance. For scenarios with frequent opening and closing, a combination of wear-resistant rubber and quenched valve seats is selected to reduce the wear rate of the sealing surface. Strict control over the precision of material processing and assembly technology is essential during production to prevent dimensional deviations or improper assembly that can compromise the sealing effectiveness. By utilizing refined structural design and carefully selected materials, the sealing performance of flap valves can be greatly enhanced to meet the requirements of various working conditions. This improvement provides crucial support for the efficient and stable operation of pipeline systems.
