How to Size a Double Flanged Reducer for Diameter Transitions

Understanding Double Flanged Reducers

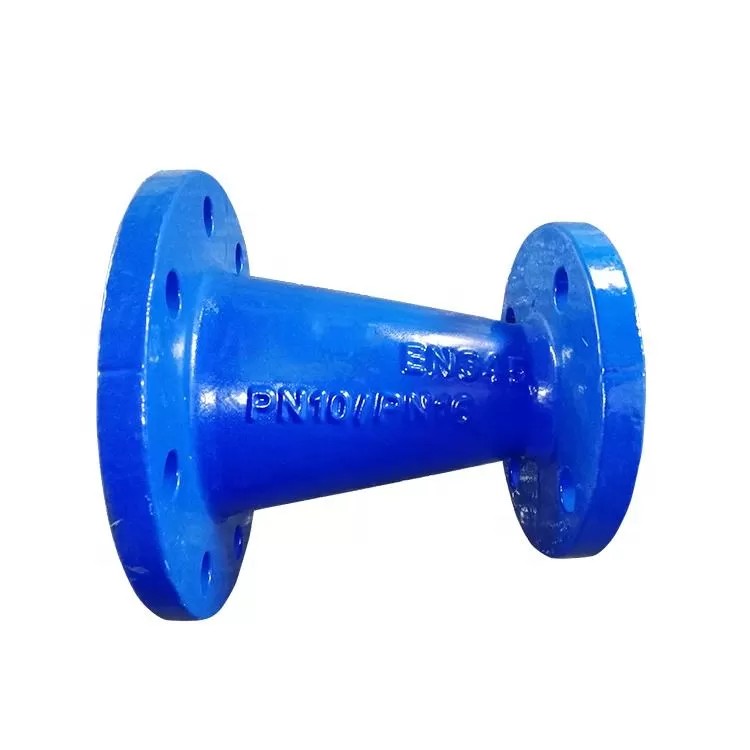

What is a Double Flanged Reducer?

A double flanged reducer is a piping component that allows for diameter transitions between different pipe sizes within a system. It is essential for proper flow management and to maintain the desired pressure levels in various applications.

Key Applications of Double Flanged Reducers

• Water distribution systems

• Industrial piping networks

• HVAC systems

• Chemical processing plants

Steps to Size a Double Flanged Reducer

Step 1: Determine Pipe Schedule and Size

Identify the existing pipe sizes and schedules in your system. This information is crucial for selecting the correct reducer size.

Step 2: Measure the Flow Rate

Determine the desired flow rate in gallons per minute (GPM) or liters per second (L/s). This is critical in calculating the necessary reducer dimensions.

Step 3: Calculate the Pressure Drop

Assess the system\'s pressure requirements. Use the following formula to calculate potential pressure drop:

• Pressure Drop (psi) = (Flow Rate²) / (Reducer Size)

Ensure that the resulting pressure drop is within acceptable limits for your system.

Step 4: Select the Reducer Material

Choose a material that is compatible with the fluids being transported. Common materials include:

• Stainless Steel

• Carbon Steel

• Polypropylene

Step 5: Review Manufacturer Specifications

Check specifications from your reducer manufacturer, such as MIDAS, to ensure compatibility with your system. Consult product catalogues or the MIDAS website for detailed information.

Step 6: Finalize Your Selection

Confirm your choice by cross-referencing your calculated dimensions with available reducer options from suppliers.

Required Tools for Sizing Reducers

• Pipe wrenches

• Measuring tape

• Flow meter

• Pressure gauge

• Technical specification sheets

Common Mistakes to Avoid

Risk 1: Ignoring Pressure Ratings

Ensure that the reducer\'s pressure rating aligns with your system requirements. Failing to do so can result in catastrophic failures.

Risk 2: Incorrect Measurements

Double-check your measurements to prevent the selection of the wrong size, which can lead to installation problems.

Risk 3: Compatibility Issues

Always verify material compatibility to avoid premature corrosion or failure when in contact with specific fluids.

Conclusion

Proper sizing of a double flanged reducer is crucial for the efficiency and safety of any piping system. By following these detailed steps and avoiding common mistakes, you can ensure a successful installation for your project. For high-quality reducers tailored to your needs, visit MIDAS at www.midaspipelines.com.
