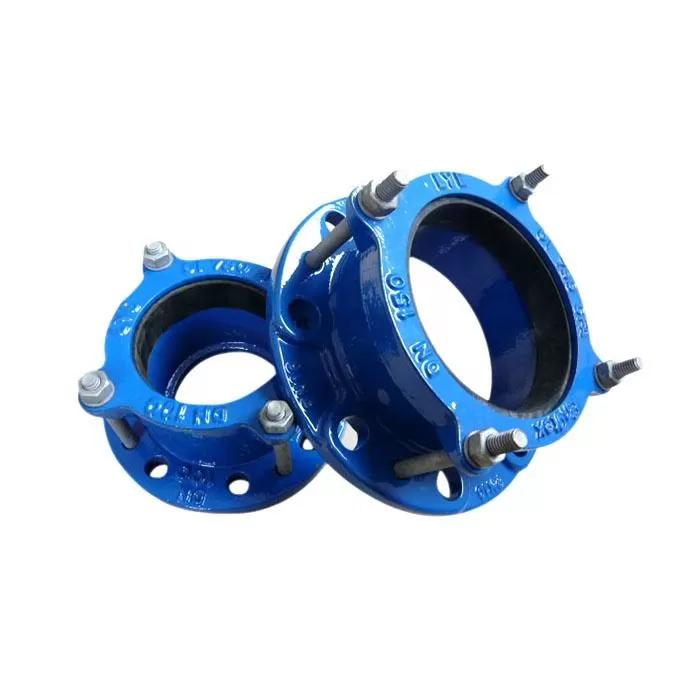

Excellent Flexibility and Sealing Performance of Flexible Flange Adaptor

As a core connecting component in modern pipeline systems, flexible flange adaptors effectively address industry pain points, such as displacement, vibration, and leakage, during pipeline operation due to their excellent flexibility and reliable sealing performance. They are widely used in various fields, including water supply and drainage, municipal engineering, industrial pipelines, and HVAC systems, providing a solid guarantee for the stable and long-term operation of various pipe networks and becoming an indispensable key component in pipeline connections.

I. Excellent Flexibility: Adapting to Multiple Working Conditions, Buffering and Reducing Loss to Protect Pipe Networks

The flexibility advantage of flexible flange adaptors is due to careful material selection and structural design. The core of the product is made from high-quality elastic materials, such as high-elasticity and high-strength nitrile rubber and EPDM rubber. These materials are reinforced with a multi-layer polyester cord or steel wire, and the entire assembly is formed through high-temperature vulcanization. This design not only ensures the material's ability to deform elastically but also enhances the overall structural strength, preventing tearing or damage during deformation.

Its flexibility is specifically reflected in its all-around compensation capacity in axial, radial, and angular directions: the axial expansion and contraction amount can reach 5-15mm, the radial displacement can accommodate 3-8mm, and the maximum angular deflection angle can reach 3-5°. It can effectively absorb the thermal expansion and contraction stress caused by temperature changes, the displacement deviation caused by slight foundation settlement, and the vibration impact generated during the operation of equipment such as water pumps and fans. Compared with rigid flange adaptors, flexible flange adaptors can buffer stress through their own elastic deformation, avoiding cracking of pipeline interfaces, loosening of flanges, and even equipment damage, thus greatly improving the impact resistance and operation stability of the entire pipe network. At the same time, the good bending and telescopic properties can reduce the precision requirements of pipeline installation, adapt to the connection of pipelines of different materials and calibers, such as steel pipes, cast iron pipes, and plastic pipes, effectively reduce the adjustment procedures during construction, shorten the construction period, and reduce the construction cost.

II. Reliable Sealing Performance: Leak-Proof and Seepage-Proof, Ensuring Long-Term Stable Operation

Sealing performance is the core competitiveness of flexible flange adaptors. By optimizing processes and enhancing structural design, the product ensures stable sealing under all working conditions, effectively eliminating pipeline leakage issues. The structural design features an arc-convex sealing surface that is precision-ground, resulting in a flat, smooth surface for a high level of fit. After docking with standard flanges, it can form a tight sealing fit surface, effectively increasing the sealing contact area and improving the sealing effect.

The specially formulated elastic rubber used in this product is designed to provide excellent anti-aging, corrosion resistance, and wear resistance. It can adapt to various working conditions, including clean water, sewage, weak acid-base mediums, and high-temperature environments over extended periods. This rubber is resistant to hardening, cracking, aging, and sealing failure. The product also employs a pressure self-tightening sealing principle: as the pressure in the pipeline increases, the sealing surfaces fit more tightly together, resulting in enhanced sealing performance. It can achieve zero leakage under low, normal, and medium-high pressure conditions (ranging from 0.6 to 1.6 MPa). Additionally, the connection between the adaptor and the flange features a bolt fastening design with evenly distributed bolts to ensure balanced stress. This design further improves sealing stability and minimizes the risk of leakage caused by uneven pressure distribution. It meets the requirements for long-term continuous operation of the pipeline.

III. Integration of Dual Advantages: Adapting to Multiple Scenarios with Outstanding Cost-Effectiveness

Flexible flange adaptors perfectly integrate excellent flexibility and reliable sealing performance, taking into account practicality and economy, and adapt to various complex scenarios. The components serve multiple functions, including vibration and noise reduction, displacement compensation, and ensuring leak-proof and seepage-proof performance. Additionally, their long-lasting sealing and anti-aging properties decrease the need for frequent maintenance, inspection, and replacement, ultimately reducing operational and maintenance costs. Compared with traditional adaptors, the service life can be extended by 3-5 years, making it an efficient, durable, and economical ideal connecting component for various pipeline projects.
