Searching for the right ductile iron pipe class can be confusing, especially with terms like “K-class” and “C-class” thrown around. Whether you're sourcing for municipal infrastructure, industrial applications, or large-scale water projects, understanding the differences between K and C classes is crucial for making an informed decision. This guide is tailored to meet your intent — comparing durability, standards, and application relevance — to help you choose the right pipe with confidence.

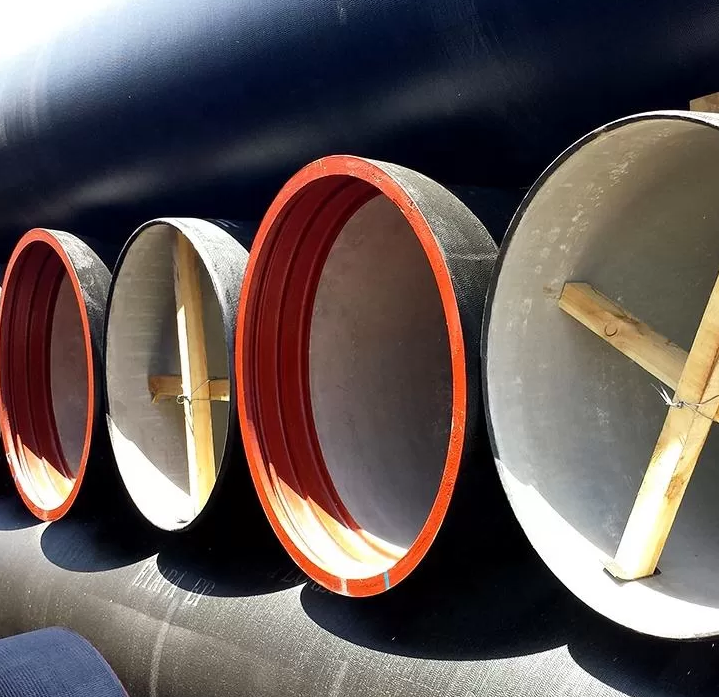

Ductile iron pipe (DIP) is a durable, high-strength piping material widely used in water and wastewater systems. It is made from ductile cast iron, which is known for its impact resistance, pressure tolerance, and flexibility under stress. Its longevity and resistance to environmental wear make it an ideal choice for underground infrastructure.
The manufacturing process includes adding magnesium to molten iron, which changes the graphite in the metal from flakes (as in cast iron) to spherical nodules — drastically improving strength and flexibility. This structural integrity is why DIP is preferred over traditional cast iron and PVC in many high-pressure environments.
The two most common classifications for ductile iron pipe are K-class and C-class. These classifications refer to the pipe’s wall thickness and pressure-handling capabilities but are determined by different standards.
K-Class: Based on ISO standards (ISO 2531), K-class pipes are designated with numbers like K7, K9, K12, etc. The higher the number, the thicker the pipe wall and the higher the pressure it can withstand. For instance, K9 is often considered a standard option for medium-pressure applications.
C-Class: This class follows the British Standard BS EN 545 and is designated as C25, C30, C40, etc. Like the K-class, a higher number indicates a thicker wall. However, the classification logic differs slightly from K-class, often leading to confusion during international procurement.
Selecting between K and C classes depends largely on application type, expected pressure load, installation environment, and relevant local or project-specific standards.
Water Transmission: For potable water pipelines, K9 or K12 class is typically sufficient due to their excellent balance of strength and cost-efficiency. If BS EN 545 standards are required, a C40 pipe may be appropriate.
Sewage & Drainage Systems: Lower-pressure systems like gravity-fed sewage might require only K7 or C25, depending on the country or project regulation.
Industrial Applications: For high-pressure industrial or chemical transport, thicker walls like K12 or C50 are advisable, offering added protection against internal and external corrosion.
It’s essential to compare how K and C class pipes match up in terms of wall thickness and pressure tolerance. Here’s a general breakdown:
– K9 pipe typically supports a pressure of around 64 bar (928 psi). – K12 pipe can go up to 100+ bar (1450+ psi). – C40 class is equivalent to about K9 in wall thickness. – C50 class approaches K12 strength in most applications.
Keep in mind that the exact pressure tolerance depends on pipe diameter, joint type, and installation conditions.
Different regions have preferred classification systems. For example:
– ISO-based markets (Asia, Africa, parts of Europe) tend to use K-class pipes. – BS EN 545-compliant countries (UK, Middle East) often prefer C-class pipes. – American markets usually follow ANSI/AWWA standards, which have their own wall-thickness designations (not discussed here).
When sourcing internationally, it’s important to ensure the pipe class aligns with both local regulations and project specifications. Always consult with the project’s engineering team or local authorities for compliance.
Q1: Which is better, K9 or C40?
A: Both are comparable in terms of wall thickness. The choice depends on the standard your project requires. If following ISO, go with K9. For BS EN 545, C40 is the equivalent.
Q2: Are K-class pipes more expensive than C-class?
A: Pricing depends on diameter, length, and wall thickness, not just class. Typically, the thicker the wall (higher class), the more expensive the pipe — regardless of whether it's K or C class.
Q3: Can I use C-class pipes in an ISO-standard country?
A: Technically yes, if the wall thickness meets the pressure requirement. But certification and compliance may be an issue. It's safer to stick to the local standard.
Q4: How do I know which class is right for my project?
A: Consult with your engineer or contractor. Consider the application (e.g., water, sewage, industrial fluid), installation depth, expected pressure, and regional standards.
Understanding ductile iron pipe classes — especially the distinction between K and C classifications — empowers buyers and engineers to select the most appropriate product for their needs. Whether you're working on municipal water lines, industrial infrastructure, or large-scale utilities, knowing the strengths of each class ensures safety, performance, and compliance.
At the decision-making stage, it’s crucial to consider not just technical specs, but also supplier reliability, certifications, and long-term performance. Choosing the right ductile iron pipe class means fewer replacements, reduced maintenance, and peace of mind.
