Ductile iron pipes are known for their strength and flexibility, making them ideal for a range of infrastructure projects. Ductile iron begins as melted iron mixed with pure magnesium before being molded. This process alters the graphite structure, giving the material both impressive strength and flexibility. These pipes are built to last for over 100 years, making them a top choice for critical infrastructure like water lines or drainage systems. Their durability and ability to bend without cracking make them the go-to option for long-lasting projects.
Due to their remarkable toughness and reliability, ductile iron pipes are perfect for large-scale infrastructure jobs. These pipes can withstand extreme weather conditions and high pressure, making them an excellent choice for projects such as city water systems and town drainage setups. Their unique combination of strength and flexibility makes them an essential material in construction projects that require longevity and reliability.

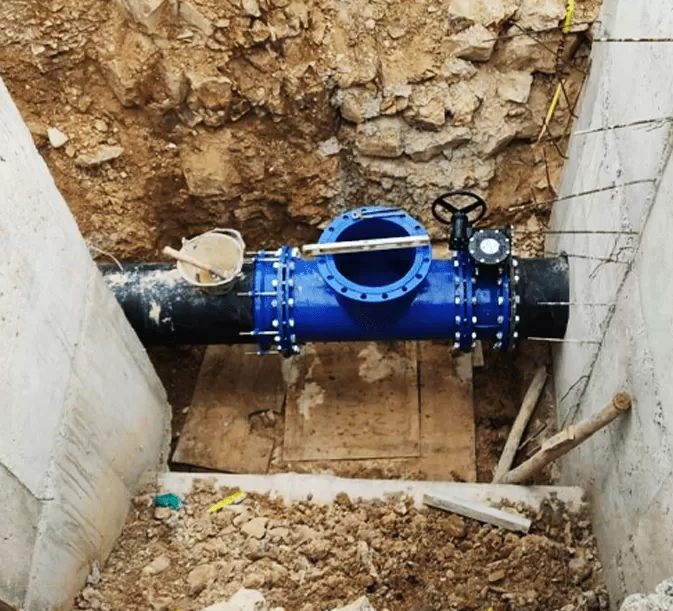

Ductile Iron Pipe for Water Supply Piping
Di pipes are widely used across various industries for fluid transportation. Their resistance to corrosion makes them ideal for systems like sewer lines, fire protection systems, and pipelines carrying industrial liquids. Their robust design allows them to thrive in challenging environments, such as beneath busy roads or airport runways, where the pipes are subjected to heavy loads and constant pressure.
One of the primary advantages of ductile iron pipes is their ability to be manufactured in large diameters, allowing for greater fluid flow while minimizing energy consumption. The cement lining inside the pipes reduces friction and provides an added layer of corrosion protection. Compared to steel pipes, ductile iron pipes offer superior longevity and can handle high pressure even in harsh and corrosive environments, making them a preferred choice for transporting water, gas, and oil over long distances.
A ductile iron pipe dimensions chart is essential for selecting the right pipe for any project. It typically includes important measurements such as nominal diameter (DN), wall thickness (T), outside diameter (OD), inside diameter (ID), weight per meter (kg/m), and pressure class. These figures help engineers choose the right fittings, joints, and supports needed for the system to function properly.
Nominal diameter provides an approximation of the pipe’s inner size, while wall thickness determines the pipe's strength and ability to withstand pressure. The weight per meter gives insight into the pipe’s stability and the level of support needed during installation. For instance, a DN300 pipe with a thicker wall will weigh more but can handle significantly higher pressure than a pipe of the same size with a thinner wall.
Self-Restraining Ductile Iron Pipe
Correctly sizing a ductile iron pipe ensures that it can carry the required amount of fluid without excessive pressure loss or causing turbulence. It also ensures compatibility with other system components like valves, flanges, and specialized joints. Poor sizing can lead to leaks or system failure, which can be costly and time-consuming to fix.
Ductile iron pipes are available in sizes ranging from DN80 to DN2000 or larger. Each pressure class, such as PN10, PN16, or PN25, has a specific wall thickness to accommodate different pressure levels. For example:
A DN500 pipe for PN10 might have a wall thickness of 6.3 mm.
The same DN500 pipe for PN25 could require a wall thickness of 11 mm.
The diameter chart helps builders select the correct pipe based on the pressure and application requirements.
The inside diameter determines the volume of fluid that can flow through the pipe, while the outside diameter is crucial for fitting the pipe into clamps or couplings. Both measurements must be known to ensure proper connection and installation, especially when combining pipes from different manufacturers or upgrading old systems. The diameter chart ensures compatibility between all components.
The ductile iron pipe diameter chart is an essential tool for ensuring all parts of a pipeline system fit together seamlessly. It is particularly useful when using dismantling joints or repair clamps, as matching the outside diameter is crucial for avoiding leaks and ensuring proper installation.
Several factors affect pipe size selection, including:
The type of fluid being transported (e.g., water, gas, or oil).
The required flow rate – larger volumes need bigger pipes.
The pressure rating – higher pressure requires thicker walls.
Environmental conditions – harsh soils may require additional coatings.
Based on these factors, engineers choose either ductile iron or steel pipes that are best suited to handle specific challenges like corrosion or high temperatures.
Engineers calculate the best pipe diameter based on flow speed (m/s), pipe area (m²), and flow volume (m³/h). Pipes that are too small create friction, wasting energy, while oversized pipes can be unnecessarily expensive. The ductile iron pipe dimensions chart helps select the optimal size to balance flow efficiency and cost.
A common error is confusing nominal and actual diameters. Always verify whether the chart shows inside or outside measurements, and be cautious of unit discrepancies (e.g., millimeters vs. inches). Additionally, ensure that the pressure ratings match your project’s specifications to avoid complications.
Use tools like calipers or ultrasonic gauges to measure the inside and outside diameters precisely. For underground pipes, ground-penetrating radar can be helpful for locating and sizing pipes before excavation begins. Regular calibration of your tools is crucial to avoid errors that could lead to incorrect fittings or system failures.
During installation, engineers use the ductile iron pipe dimensions chart alongside CAD drawings to select compatible fittings. This helps prevent errors and reduces the need for rework. For maintenance, accurate sizing ensures that parts can be replaced without dismantling large sections of the pipeline.
Modern Building Information Modeling (BIM) systems allow engineers to integrate ductile iron pipe dimension charts directly into their designs. This helps identify potential issues between pipe systems early in the design phase, saving time and preventing costly mistakes during construction.
Charts provided by manufacturers, such as Midas, are based on actual product measurements, not approximations. This ensures that fittings, like dismantling joints or couplings, are perfectly compatible with the pipes during installation. Ductile iron systems require strict standards for durability, and manufacturer-supplied charts guarantee the accuracy needed for long-lasting, reliable systems.
The chart helps builders select the right pipe sizes by providing both inside and outside diameters, ensuring proper fluid flow and pressure handling. It also helps ensure that parts like flanges or couplings fit correctly.
Determine your project's maximum pressure requirements, then refer to the ductile iron pipe dimensions chart to select the appropriate wall thickness for pressure classes such as PN10 or PN25.
Mixing components from different manufacturers is risky unless you can confirm that the sizes match exactly. Using official ductile iron pipe diameter charts helps avoid leaks or joints that could fail under pressure.
Nominal diameter is an approximation, while the actual inside or outside diameter is determined by wall thickness, which is specified in the ductile iron pipe dimensions chart for each pressure class.
For the most accurate data, use charts provided by reputable manufacturers like Midas. These charts reflect real product measurements, ensuring a perfect match when selecting parts for your pipeline project.
