Flanged Ductile Iron Fittings are a high quality and reliable solution for ensuring efficient and safe flow of fluids and gases. They are produced using the highest standards of quality and are made of durable materials that can withstand high pressure and extreme temperatures. Flanged fittings are commonly used in piping systems, as they provide the necessary strength and stability for connecting pipelines...
Material: iron GGG500-7, GGG450-10 or Ductile iron
Standard: ISO2531, EN545, AWWA153 & C110
Size: DN60mm-2000mm
Hardness: maximum≤250HB
Tensile Strength:minimum≥420MPA
Elongation: minimum≥5%
Certificate: ISO 9001 2008 and BV Product Conformity
Gasket: are SBR, EPDM, NBR
Coating: Cement lining inside, zinc primer and bitumen painting outside; fusion bonded epoxy coating; bitumen painting inside and outside red anti-rust coating.

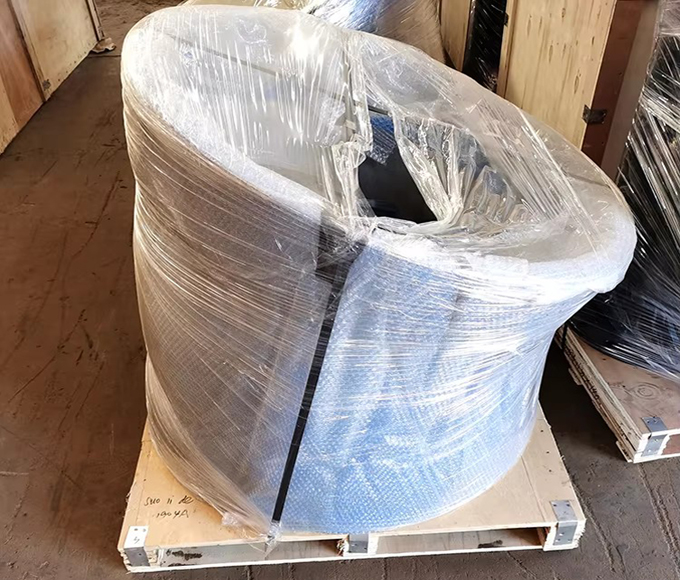

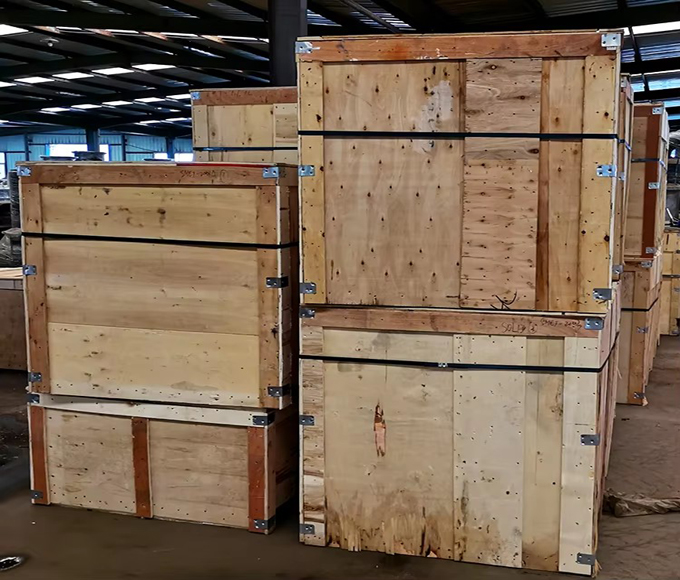

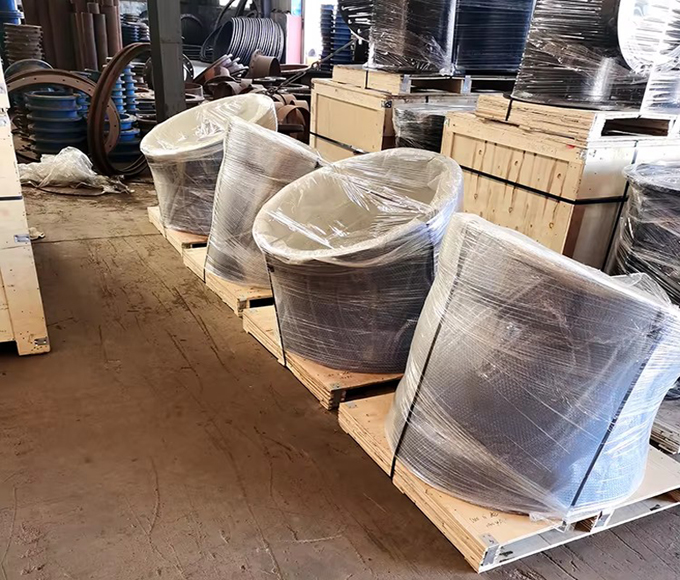

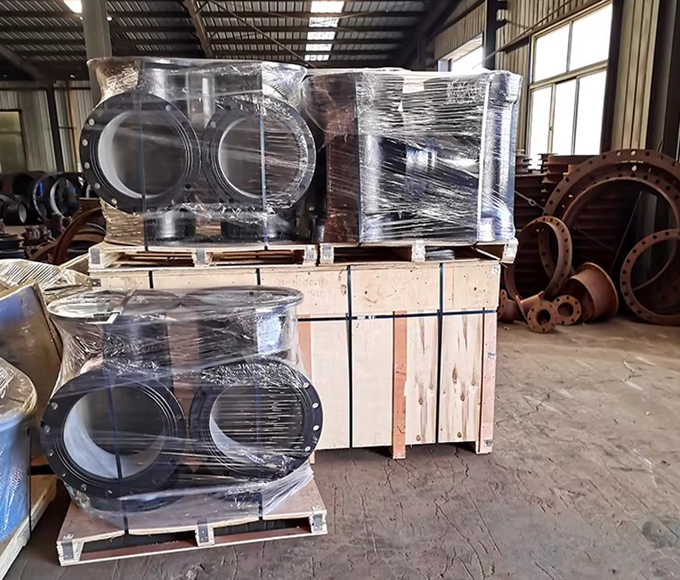

Packing: wooden cases with plastic layer ,wooden pallets with plastic layer
| Material | Ductile iron |
| Standard | EN545, EN598, ISO2531, ANSI/AWWA, etc |
| Size | DN50-DN2600mm |
| Color | Blue, Black, Red Ect. |
| Joint Type | Flange type |
| Pressure | PN10/PN16/PN25/PN40 |
| OEM | Acceptable |
| Fitting Types | Socket bend, Flanged bend, Socket and Flanged Tee, Flanged socket, Socket taper, blank flanges, as well as Flanged adaptor,coupling, dismantling joints, Fitting for PVC pipes and Other pipeline accessories |
| Surface treatment | Fusion bonded epoxy coating |
| Cement lining inside and zinc and bitumen coating outside | |
| Zinc+bitumen inside and outside | |
| According to customers' requirements | |
| Inspection | Foundry in-house: Third party inspection available upon request |
| Application | Stormwater systems Wastewater systems Irrigation systems |
| Advantage | We can make various high quality ductile iron fittings according to customer's requests. |
| Package | Standard wooden pallets or wooden cases |
Flanged Ductile Iron Fittings are a high quality and reliable solution for ensuring efficient and safe flow of fluids and gases. They are produced using the highest standards of quality and are made of durable materials that can withstand high pressure and extreme temperatures. Flanged fittings are commonly used in piping systems, as they provide the necessary strength and stability for connecting pipelines.
These fittings have a flange on one end and on the other end a socket or spigot end. The flange end provides quick and easy connection to the pipeline, while the socket or spigot end allows for easy insertion into adjacent fittings. Flanged ductile iron fittings are an excellent choice for pipelines that require tight connections and reliable sealings.
One of the main advantages of flanged ductile iron fittings is their versatility. They can be used in a wide range of applications, including water and sewage treatment plants, industrial facilities, and oil and gas refineries. They are suitable for use with a variety of fluids, including corrosive and hazardous materials.
Flanged ductile iron fittings are available in a range of sizes and shapes to accommodate different pipeline configurations. They can be used for both above and below ground installations, and are easy to install and maintain. With proper care and maintenance, flanged ductile iron fittings can last for many years, providing a cost-effective solution for pipeline connections.
If you are looking for a reliable solution for your pipeline system, flanged ductile iron fittings are an excellent choice. With their durability, versatility, and ease of installation, they can help ensure the smooth and efficient flow of fluids and gases in your system. Contact us today to learn more about our selection of flanged ductile iron fittings and how we can help you with your pipeline needs.
