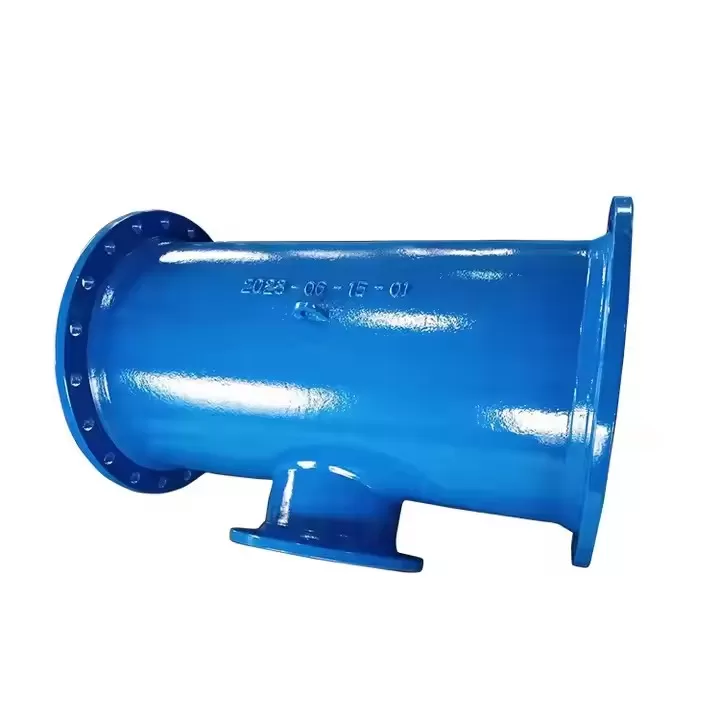

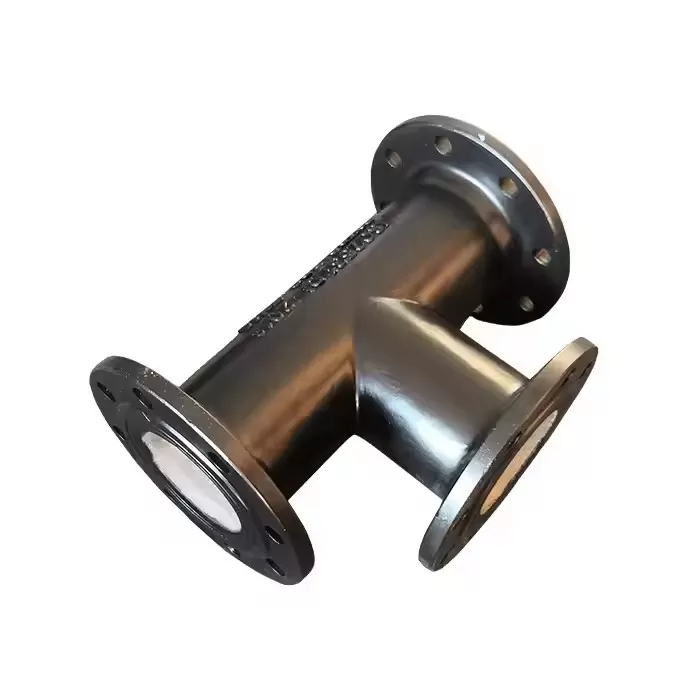

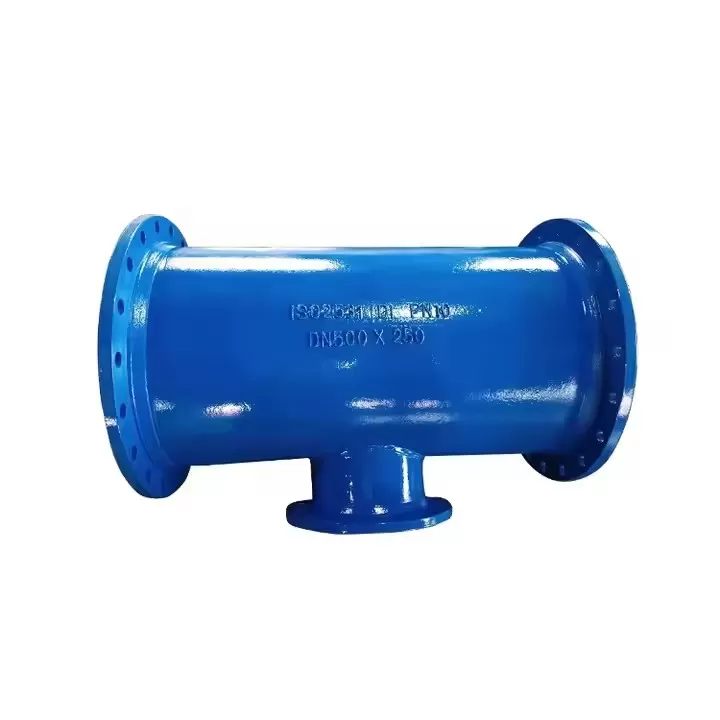

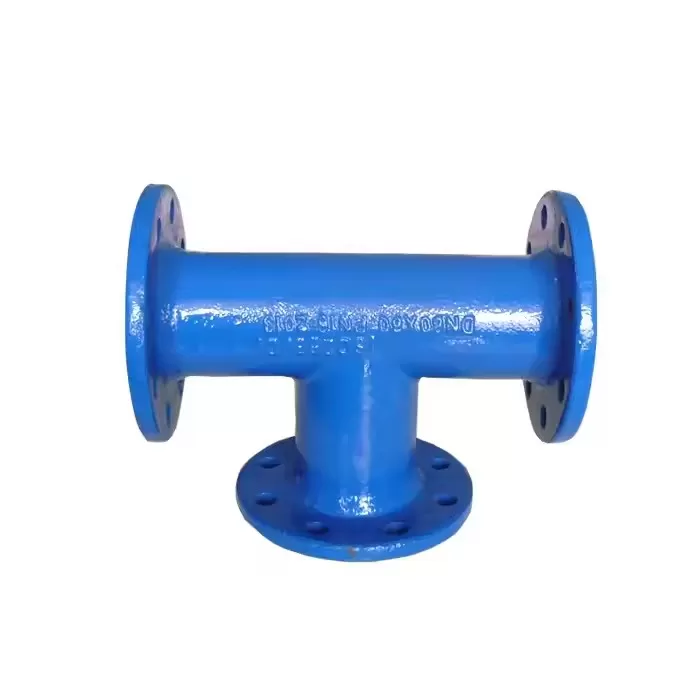

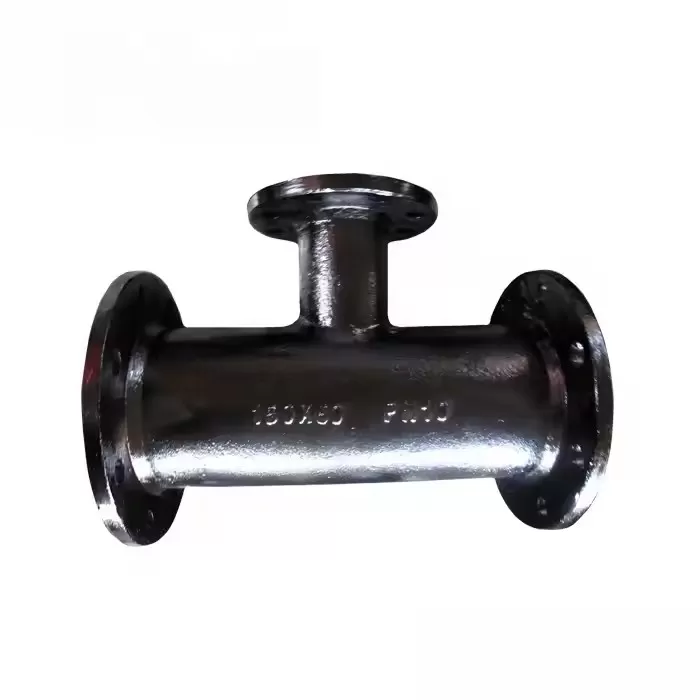

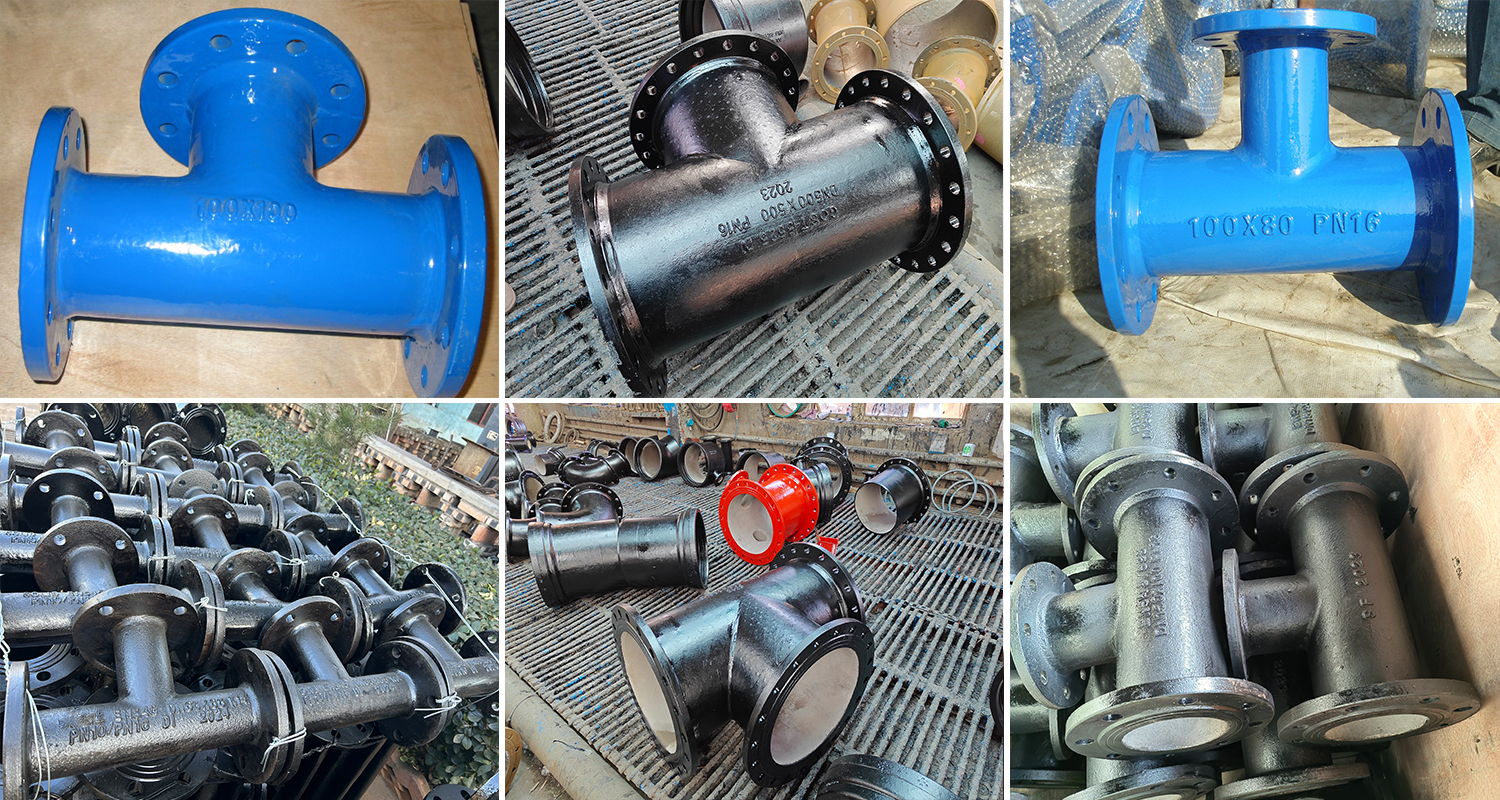

Ductile Iron Tee is a high-quality, reliable piping component that is designed to connect three different pipelines together in a range of piping systems. Made from durable ductile iron material, these tees are renowned for their excellent strength and resistance to corrosion, making them ideal for use in harsh industrial environments...
Material: iron GGG500-7, GGG450-10 or Ductile iron
Standard: ISO2531,EN545, AWWA153 &C110
Size: DN60mm-2000mm
Certificate: ISO 9001 2008 and BV Product Conformity
Gasket: are SBR, EPDM, NBR
Coating: Cement lining inside, zinc primer and bitumen painting outside; fusion bonded epoxy coating; bitumen painting inside and outside red anti-rust coating.
Packing: wooden cases with plastic layer ,wooden pallets with plastic layer
| Material | Ductile iron |
| Standard | EN545, EN598, ISO2531, ANSI / AWWA, etc |
| Size | DN50-DN2600mm |
| Color | Blue, Black, Red Ect. |
| Joint Type | T type (push on joint), K- type, Flange type, Self-restrained type |
| Pressure | PN10/PN16/PN25/PN40 |
| Brand | MIDAS |
| OEM | Acceptable |
| Fitting Types | Socket bend, Flanged bend, Socket and Flanged Tee, Flanged socket, Socket taper, blank flanges, as well as Flanged adaptor, coupling,dismantling joints, Fitting for PVC pipes and Other pipeline accessories |
| Surface treatment | Fusion bonded epoxy coating cement lining inside and zinc and bitumen coating outside Zinc+bitumen inside and outsideaccording to customers' requirements |
| Inspection | Foundry in-house Third Party inspection available upon request |
| Application | Stormwater systemsWastewater systemsIrrigation systems |
| Advantage | We can make various high quality ductile iron fittings according to customer's requests. |
| Package | standard Wooden pallets or wooden cases |
Ductile Iron Tee is a high-quality, reliable piping component that is designed to connect three different pipelines together in a range of piping systems. Made from durable ductile iron material, these tees are renowned for their excellent strength and resistance to corrosion, making them ideal for use in harsh industrial environments.
Our Ductile Iron Tees are available in a wide range of sizes and dimensions to suit your specific needs. All our tees are manufactured to strict industry standards and are rigorously tested to ensure that they meet the highest levels of performance and reliability.
Our tees feature a smooth, even surface finish that allows for easy installation and improved flow characteristics. They are also designed to provide excellent mechanical strength, withstanding high pressure and high temperature environments without compromising on their performance.
Whether you need Ductile Iron Tees for water treatment plants, wastewater systems, or industrial piping applications, we have a range of products that are suitable for your needs. Our team of experts can help you choose the right type of tee for your application and provide you with all the technical specifications you need to ensure the best possible performance.
Overall, our Ductile Iron Tees offer exceptional durability, strength, and corrosion resistance, making them an ideal choice for a range of industrial piping applications. Get in touch with us today to find out more about our range of Ductile Iron Tees and how they can help improve the performance of your piping systems.
