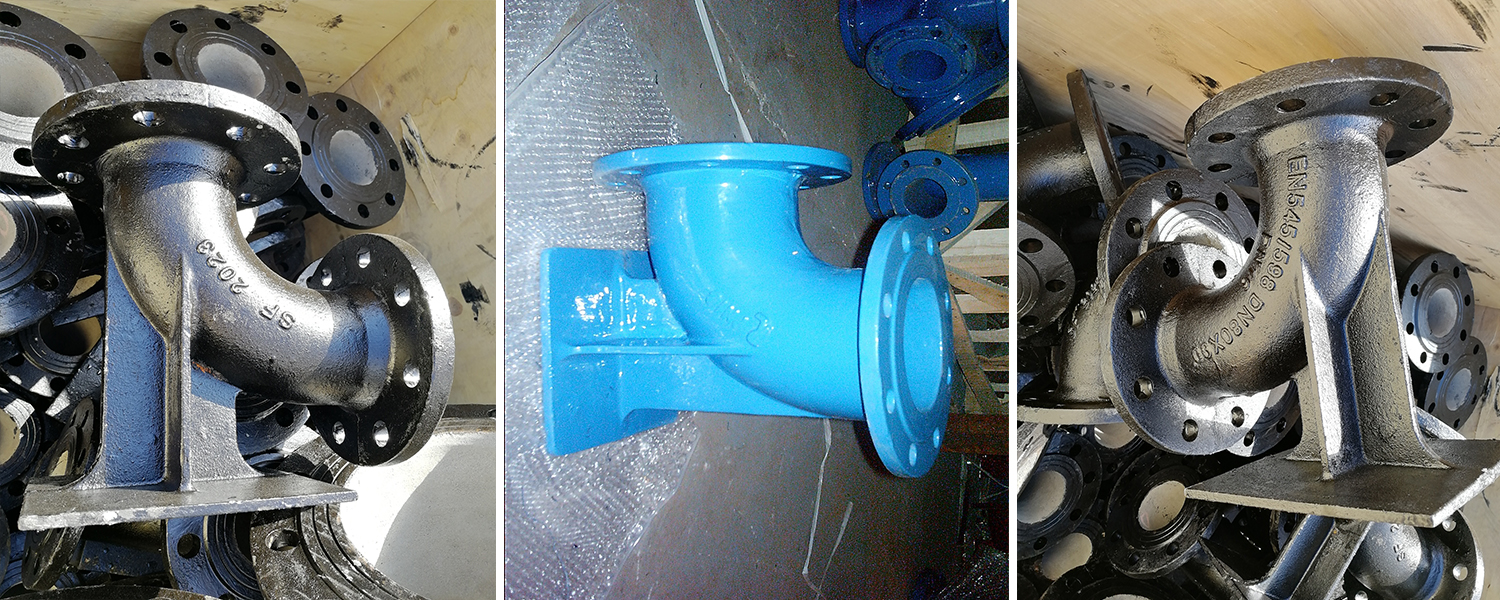

Double Flange 90° Duck Foot Bend

Material:Ductile iron

Standard: EN545,   EN598, ISO2531, ANSI/AWWA, etc

Size: DN50-DN2600mm

Color: Blue,Black,Red   Ect.

Joint Type: Flange   type

Pressure: PN10/PN16/PN25/PN40

OEM: Acceptable.

We're professional double flange 90° duck foot bend manufacturers and suppliers in China, specialized in providing high quality products. We warmly welcome you to buy high-grade double flange 90° duck foot bend for sale here from our factory. For price consultation, contact us.



Share:

Specifications and parameters


MaterialDuctile iron
StandardEN545, EN598, ISO2531, ANSI / AWWA, etc
SizeDN50-DN2600mm
ColorBlue, Black, Red Ect.
Joint TypeFlange type
PressurePN10/PN16/PN25/PN40
OEMAcceptable
Fitting TypesSocket bend,Flanged bend, Socket and Flanged Tee,Flanged socket,Socket taper, blank flanges,as well as Flanged adaptor,coupling,dismantling joints, Fitting for PVC pipes and Other pipeline accessories
Surface treatmentFusion bonded epoxy coating
Cement lining inside and zinc and bitumen coating outside
Zinc+bitumen inside and outside
According to customers' requirements

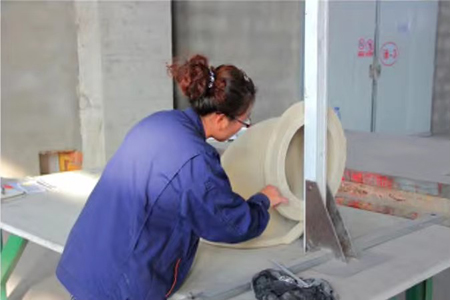

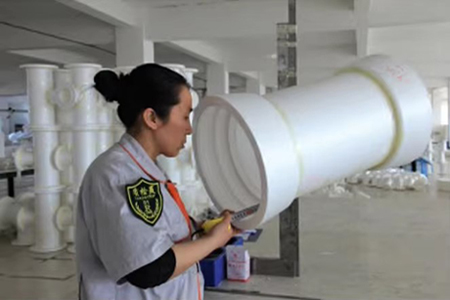

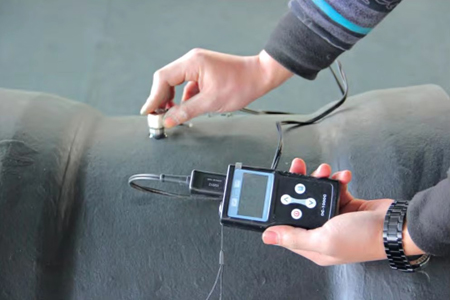

InspectionFoundry in-house: Third party inspection available upon request
ApplicationStormwater systems
Wastewater systems
Irrigation systems
AdvantageWe can make various high quality ductile iron fittings according to customer's  requests.
PackageStandard wooden pallets or wooden cases


As a top manufacturer in China, we proudly present our Ductile Iron Double Flange Duckfoot Bend Elbow, designed to provide superior solutions for water, sewage, and plumbing systems. We are confident that this product will exceed your expectations. Below, we highlight the key features and benefits of this product.


Features and Benefits:


1. Premium-Grade Material:

   Our Ductile Iron Double Flange Duckfoot Bend Elbow is crafted from premium ductile iron, known for its strength, durability, and excellent corrosion resistance, making it ideal for use in a variety of water and sewage systems.


2. Double Flange Design:

   The double flange construction enhances the product’s strength and stability, ensuring it can withstand high-pressure flows and mechanical stress during operation.


3. Unique Duckfoot Bend:

   This product features a special duckfoot bend, which is perfect for tight corners or confined spaces. Its design allows for smooth pipe movement and easier installation in challenging plumbing layouts.


4. Effortless Installation:

   Designed for quick and simple installation, the double flange eliminates the need for specialized tools. This feature saves time and effort, making it ideal for contractors and installers working on busy projects.


5. Wide Range of Applications:

   Suitable for various water, sewage, and plumbing systems, the Ductile Iron Double Flange Duckfoot Bend Elbow is perfect for both commercial and residential applications, ensuring optimal performance in every project.


6. Extended Service Life:

   Constructed with high-quality ductile iron, this product is built to withstand high-pressure conditions and daily wear, ensuring a long service life and reducing maintenance costs over time.

Product Dimensions

NOMIMALDIAMETERDNLCdBd1MASS(Kgs)
PN10PN16PN25
5015095150

9.19.19.1
60160100160

10.310.310.1
65165100165

11.511.511.3
801651101801201914.114.114.1
1001801252001302317.317.818.8
1252001402251402323.523.524.5
1502201602501652830.030.032.0
2002501903002152846.046.550.5
2503502253502503175.075.082.0
30040025540030031105.0106.0116.0
35045029045035034139.0145.0162.0
40050032050039037178.0189.0212.0
45055035055044037245.0261.0283.0
50060038560049037283.0313.0337.0
60070045070058040428.0481.0509.0
70080051580068043684.0708.0-
80090058090077049944.0974.0-
90010006451000870491252.01290.0-
100011007101100960561629.01698.0-
1100120077512001060562080.02150.0-
1200130084013001160562599.02709.0-
