Specification:
Material:
Body: Ductile iron grade 500-7/ 450-12 in accordance with ISO 1083
Gasket: Rubber E.P.D.M. in accordance with EN 681.1
Fluid temperature: 0°C-50°C， excluding frost
Coating:
Externall coatings: 1. zinc coating+bitumen painting 2. liquid epoxy painting 3. epoxy applied by FBE
Internall coatings: 1. cement mortar lining 2. liquid epoxy painting 3. epoxy applied by FBE according to customers' requirements.
Standard: Dimensions and testing in accordance with ISO 2531/EN 545
Body: Ductile iron grade 500-7/ 450-12 in accordance with ISO 1083
Gasket: Rubber E.P.D.M. in accordance with EN 681.1
Fluid temperature: 0°C-50°C, excluding frost
Externall coatings: 1. zinc coating+bitumen painting 2. liquid epoxy painting 3. epoxy applied by FBE
Internall coatings: 1. cement mortar lining 2. liquid epoxy painting 3. epoxy applied by FBE according to customers' requirements.
Standard: Dimensions and testing in accordance with ISO 2531/EN 545
| Material: | Ductile Cast Iron |
| Standard: | ISO2531, EN545, EN598 |
| Pressure: | PN10, PN16, PN25 |
| Flange drilled: | ISO7005-2,BS4504, EN1092-2, DIN2501 |
| Specification: | DN50 to DN2000, K12/14 |
| Joints type: | Typon joint (push on joint) |
| Application: | Water supply project, drainage, sewerage, Irrigation, water pipeline |
| Coating: | |
| Internal | Portland cement mortar lining |
| Sulphate Resistant cement mortar lining | |
| High-Aluminum cement mortar lining | |
| Fusion bonded epoxy coating | |
| Liquid epoxy painting | |
| Black bitumen painting | |
| External | Zinc(130g/㎡)+bitumen(70microns) painting |
| Fusion bonded epoxy coating | |
| Zinc-aluminum alloy (400g/㎡)+liquid epoxy painting according to customers' requirements | |
| Accessories | Rubber ring (SBR, NBR, EPDM), bolts, nuts and wahsers, restrained glands |
| Packing | Wooden cases or pallets |

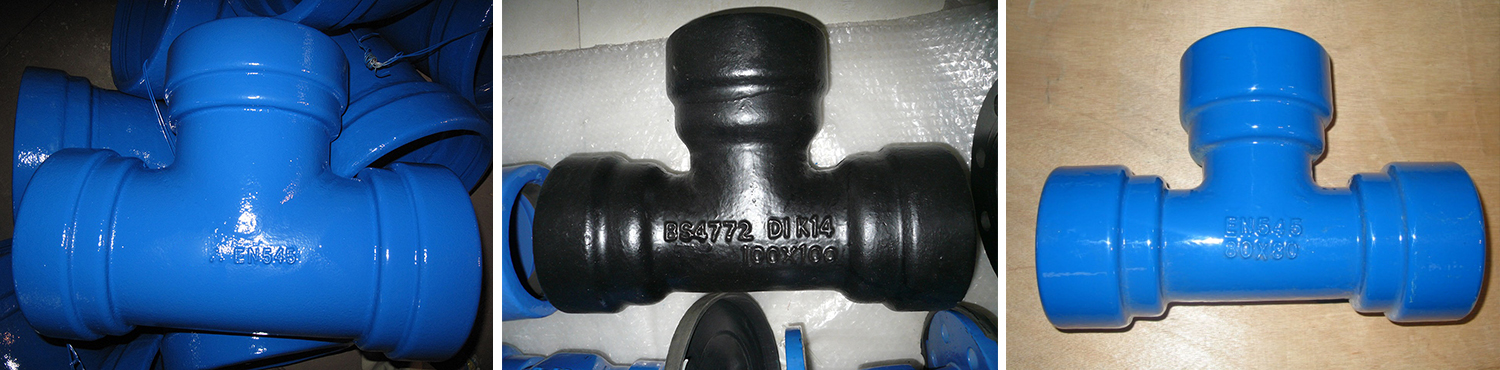

DI socket fittings with T-type joint are highly durable fittings suitable for use in water supply and drainage systems. They are made of ductile iron material that allows for high strength, toughness, and resistance to corrosion and abrasion. The T-type joint design facilitates the connection of three pipes at right angles, providing flexibility in various installation scenarios.
These fittings come with a socket end that enables easy connection to DI pipes, making installation quicker and more efficient. They are available in a range of sizes to cater to different pipe diameters, ensuring compatibility with different pipe sizes in the network. Furthermore, the fittings are designed to withstand high pressure, making them suitable for use in demanding applications.

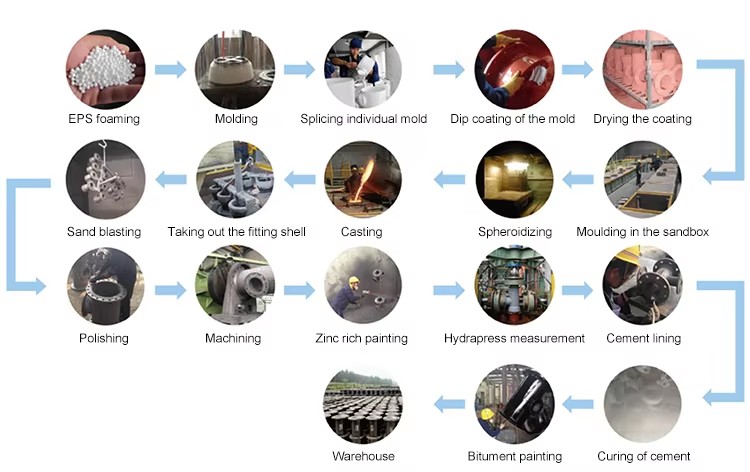

With precision engineering, these fittings meet the highest industry standards for quality and reliability. They are manufactured using the latest automated processes, ensuring consistency and accuracy in production. The fittings undergo strict quality control tests to ascertain compliance with both national and international standards.
DI socket fittings with T-type joint come in a range of surface finishes, including epoxy coating and galvanized options, to provide added protection against corrosion and rusting. This makes them ideal for use in underground applications where they may be exposed to corrosive agents.
In summary, DI socket fittings with T-type joint are an ideal solution for those looking for high quality, reliable, and efficient fittings for their water supply and drainage systems. They offer a wide range of benefits, including durability, ease of installation, compatibility with different pipe sizes, and resistance to high pressure and corrosion. Whether you are looking to add to your existing network or starting a new project, these fittings will provide a safe, long-lasting, and efficient solution.
