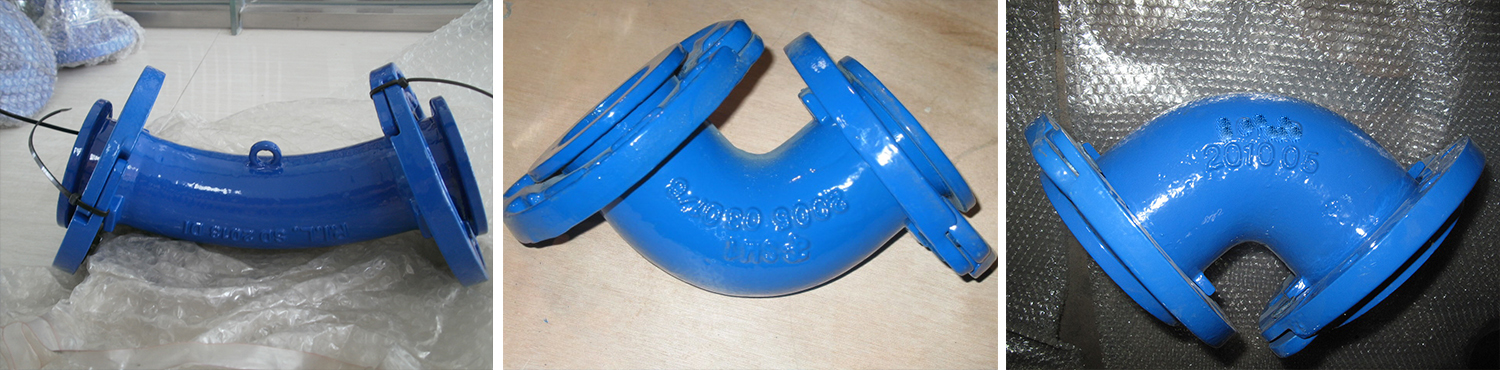

Loosing Flanged Bend 11.25°,22.5°, 45°, 90°:
Material: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083
Standard: ISO2531, EN545, EN598, BS4772
Pressure: PN10, PN16,PN25
Flange drilled: ISO7005-2,BS4504,EN1092-2, DIN2501
Specification: DN50 to DN2000, K12/14
Joints type: Flange
Application: Water supply project, drainage, sewerage, Irrigation ,water pipeline
The Loosing Flanged Bend is a versatile and durable fitting designed for water supply, drainage, sewage, irrigation, and water pipeline projects. Available in angles of 11.25°, 22.5°, 45°, and 90°, these bends are made from high-quality ductile iron (grade 500-7/450-10), ensuring excellent strength and longevity. The fittings conform to industry standards, including ISO 2531, EN 545, EN 598, and BS 4772, making them suitable for use in various global infrastructure projects.
| Material | Ductile Cast Iron |
| Standard | ISO2531, EN545, EN598, BS4772 |
| Pressure | PN10, PN16,PN25 |
| Flange drilled | ISO7005-2,BS4504,EN1092-2, DIN2501 |
| Specification | DN50 to DN2000, K12/14 |
| Joints type | Flange |
| Application | Water supply project, drainage, sewerage, Irrigation ,water pipeline |
| Accessories | Gaskets,bolts and nuts available upon request |
| Coating | a). Inside and outside with FBE (fusion bonded epoxy) coating or Epoxy painting; |
| b). Inside and outside with Epoxy painting; | |
| c). Inside and outside wih black bitumen. | |
| Gaskets are SBR, NBR or EPDM; | |
| Bolts and Nuts | Carbon steel with galvanized zinc plated G4.8/G8.8, or SS304/SS316 |
| Package | Wooden cases and protection layer. |
