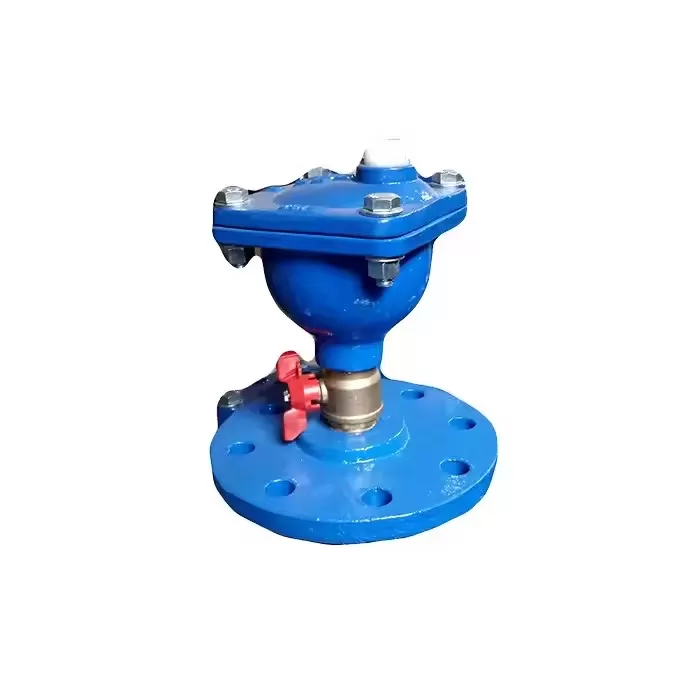

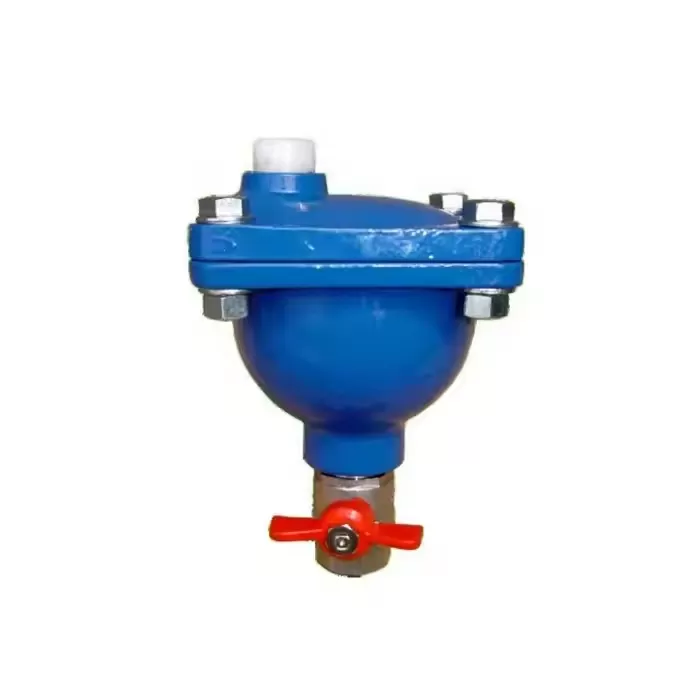

Mini Single Orifice Air Release Valve

Mini Single Orifice Air Release Valve

Mini Single Orifice Air Release Valve

The mini single orifice air release valve is an efficient exhaust device designed specifically for fluid delivery systems with limited space and strict requirements for equipment volume. With its exquisite shape and excellent performance, it provides reliable guarantees for the stable operation of various pipeline systems.

Its structure is small but precise, mainly composed of a micro valve body, a lightweight floating ball, a sealed valve seat, and a single exhaust hole. The working principle is based on the floating mechanism of the floating ball with the change of water level: during the pipeline water injection stage, air gathers at the installation of the exhaust valve, and the water level drops, causing the floating ball to sink.

The single exhaust hole opens, and a large amount of air is quickly discharged. When the pipeline is filled with water, the floating ball rises due to buoyancy and tightly seals the exhaust hole to prevent water leakage. During normal system operation, if small bubbles accumulate, the float will make subtle adjustments to continuously discharge the bubbles, ensuring that the pipeline always maintains a good full flow state.

The mini single orifice air release valve has significant advantages. Firstly, it is compact in size, only a fraction of traditional exhaust valves, making it easy to install in narrow spaces, complex pipeline nodes, or areas sensitive to equipment size, greatly enhancing installation flexibility. Secondly, it has a sensitive response. With optimized floating ball structure and exhaust hole design, it can quickly and accurately remove a large amount of air or handle small bubbles, effectively avoiding damage to the system caused by air resistance, water hammer and other problems. Thirdly, energy conservation and consumption reduction can be achieved by continuously stabilizing exhaust, reducing energy loss caused by air entrapment in pipelines, improving fluid transport efficiency, and lowering operating costs. In addition, the valve is made of high-strength and corrosion-resistant materials, which are durable and easy to maintain.

In the application field, the mini single orifice air release valve performs well. It is widely used in small household water supply and drainage systems, precision instrument cooling circulation pipelines, building central air conditioning water systems, as well as special scenarios such as ships, aerospace, etc. that require strict equipment volume and weight requirements. With efficient exhaust and compact design, it has become an ideal choice to ensure the efficient and stable operation of various systems, providing innovative solutions for the optimization and upgrading of fluid transport systems.
